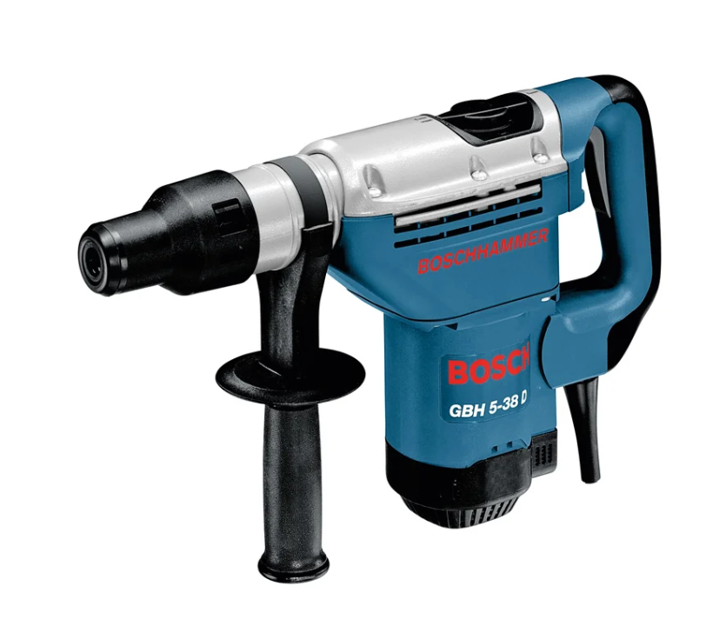

Bosch Rotary Hammer GBH 5-38

Warning: Ensure you are wearing appropriate safety equipment before proceeding.

Is the dust protection cap 1 damaged?

If the dust protection cap is damaged, it should be replaced immediately. We recommend having this carried out by an after-sales service.

Enter the name of the after-sales service contacted for cap replacement

Inserting the tool (Refer to figure A)

Is the shank end of the tool clean and lightly greased?

Is the tool inserted in a twisting manner into the tool holder after pushing back the locking sleeve 2?

Is the tool latched properly? Check by pulling the tool.

Removing the tool (Refer to figure B)

Warning: Before any work on the machine itself, pull the mains plug.

Machine and ventilation slots clean

Dust protection cap in good condition

If dust protection cap is damaged, report to after-sales service.

Note: The power tool is oil-lubricated. An oil change is required only within the scope of maintenance or repair.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent.

Machine operational after maintenance

If machine fails, describe the issue

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
