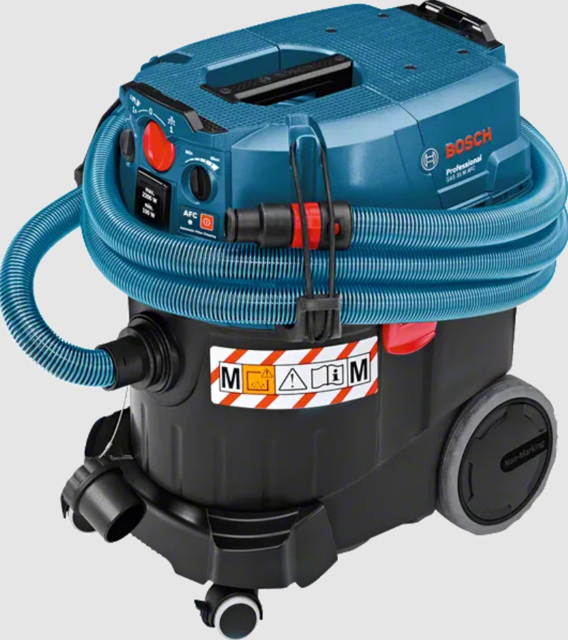

Bosch Bosch All Purpose Vacuum Cleane Gas 35 M AFC Gas 35 M AFC

Warning: The vacuum cleaner contains materials that are hazardous to one’s health. Have the emptying and maintenance, incl. the disposal of dust-collection containers, carried out only by specialists. Appropriate protective equipment is required. Do not operate the vacuum cleaner without the complete filter system. Otherwise there is danger to your own health.

Automatic filter cleaning (AFC) deactivated?

Unlock the latches 13 and remove the vacuum lid 12.

Insert the disposal bag 25 into the container 1 with the filling opening toward the front.

Pull the filling opening over the connection flange into the recess of the connection flange.

Make sure that the disposal bag 25 faces completely against the interior sides of the container 1.

Fold the rest of the disposal bag 25 over the edge of the container 1.

Reattach the vacuum lid 12 again and lock the latches 13.

Warning: Only trained personnel should perform this procedure.

Is the filter cleaning system actuated?

Is the vacuuming performance sufficient?

Note: Regular use of the filter cleaning feature increases the tool life of the filter.

Is the automatic filter cleaning deactivated when vacuuming pure liquids or working with a paper filter bag?

Is the flat-fold filter only contaminated on the surface?

Note: Manual cleaning of the flat-fold filter by striking/tapping against it or blowing it out is not necessary, and can even damage the filter.

Is the automatic filter cleaning factory-set?

Is the automatic filter cleaning switched on/off only when the VAC is running?

Before any work on the vacuum cleaner itself, pull the mains plug.

For safe and proper working, always keep the vacuum cleaner and ventilation slots clean.

Wear a dust protection mask when maintaining and cleaning the vacuum cleaner.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

A dust-technical inspection is to be carried out at least once every year by the manufacturer or an instructed person, e. g. for damage of the filter, tightness against leakage of the vacuum cleaner and function of the control/monitoring unit.

For category M vacuum cleaners that were in contaminated environments, the exterior as well as all machine parts should be cleaned or treated with sealants.

When performing maintenance and repair work, all contaminated components that cannot be cleaned to satisfactory must be disposed of.

For maintenance on behalf of the user, the vacuum cleaner must be disassembled, cleaned and maintained as far as feasible, without causing a risk for the maintenance personnel or other persons.

Prior to disassembly, the vacuum cleaner should be cleaned in order to prevent any risks.

Warning: The requirements for the ingress degree (dust category M) have only been proven for dry vacuuming.

Brush inserts carefully pried out of the floor nozzle using a suitable tool

Rubber lips inserted into the floor nozzle

Is the structured side of the rubber lips facing outward?

Sign off on the rubber lip replacement

Warning: Ensure the vacuum cleaner is unplugged before starting the procedure.

Airflow regulator set to the hose diameter being used

Mode selector switch set to the 'vacuuming' symbol

Airflow monitoring system working properly

Alarm sounds if airflow falls below 20 m/s

Vacuum cleaner switched off after alarm

Describe any malfunctions found

Sign off on the vacuum cleaner cleaning
