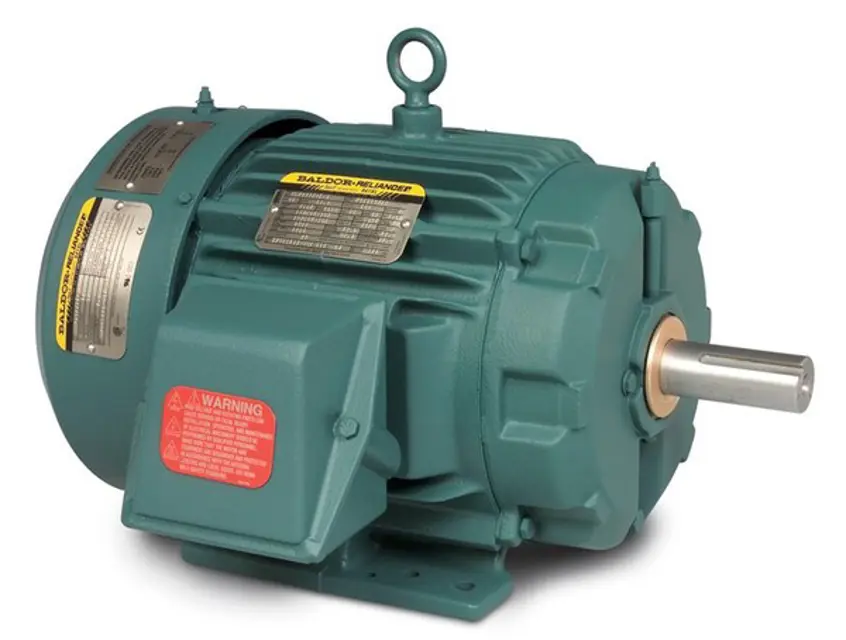

Baldor Super-E® AC Motor ECP3580T

DANGER: Electrocution and Electrical Burn Hazards

Contact with high voltage will electrocute or burn you. Power switches on the machine and the control box do not eliminate these hazards. High voltage is present at the machine unless the main power is off. Electrical power can cause death or severe injury.

Do not service machine unless qualified and authorized.

Lock OFF and tag out power at the wall disconnect before servicing, or in accordance with factory service procedures.

DANGER: Entangle and Crush Hazard

Contact with moving components normally isolated by guards, covers, and panels, can entangle and crush your limbs. These components move automatically.

Do not service machine unless qualified and authorized.

Lock OFF and tag out power at the wall disconnect before servicing, or in accordance with factory service procedures.

Exterior of the motor free of dirt, oil, grease, water, etc.

Time taken to complete each stroke (in seconds)

Quantity of grease applied (in strokes)

No grease dripped on the brake disk or clutch tire/drum
