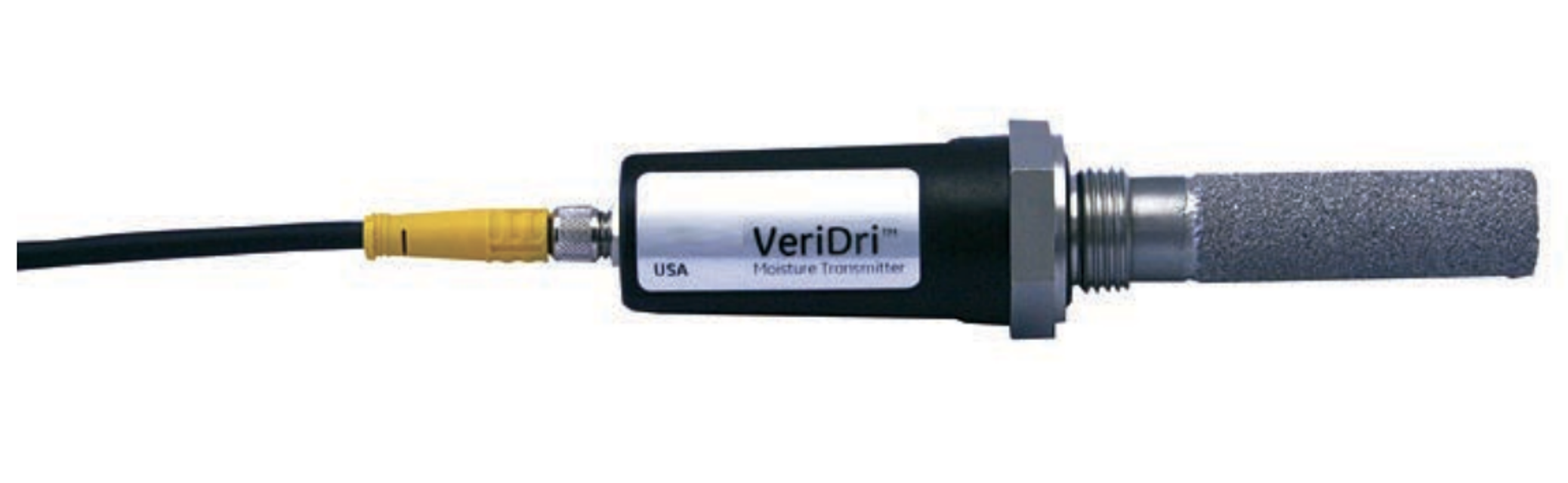

Baker Hughes Moisture Transmitter VeriDri

To clean the moisture probe, you will need the following items: • Three glass (NOT metal) containers with the following solvents: • 2 containers, each with approximately 300 ml of reagent-grade hexane or toluene

• 1 container, with approximately 300 ml of distilled (NOT deionized) water.

• An oven set at 50°C ± 2°C (122°F ± 3.6°F), for drying the probe

Complete the following steps to remove the transmitter from the system: 1. Using a 1-1/8 in. wrench, unthread the transmitter from the fitting on the sample system/process using the probe hex nut as indicated below.

2. Record the dew point of the ambient air.

3. Disconnect the cable from the transmitter module.

4. Unscrew the stainless-steel shield from the probe mount, and carefully remove it without touching the sensor.

- Factory sensor recalibration by Panametrics is recommended every 6-12 months, depending on the application.;
