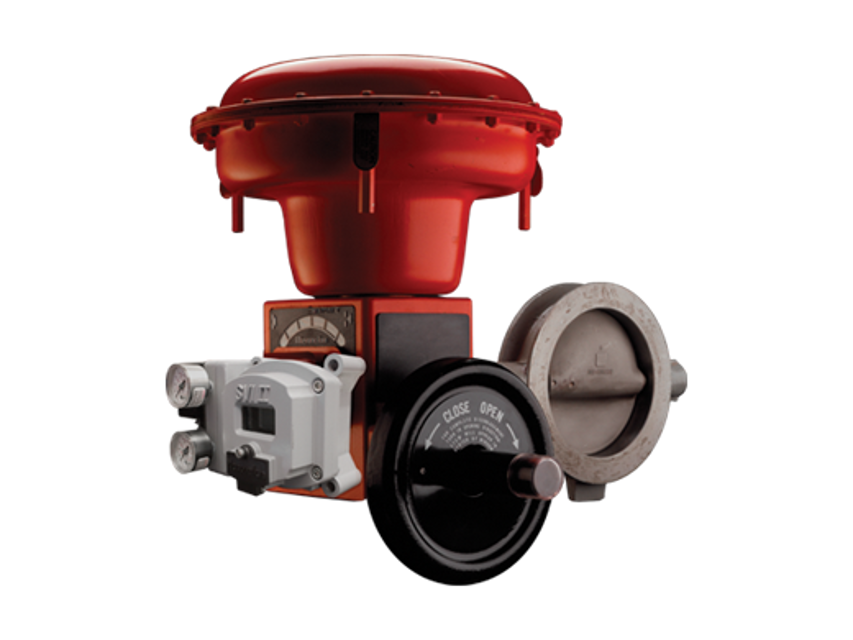

The Baker Hughes Control Butterfly Valve with Actuator Model 33 37002 Series MiniTork II is designed for precise flow control in industrial applications. This robust valve and actuator combination ensures reliable performance and durability, making it ideal for various process control systems.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Baker Hughes Control Butterfly Valve with Actuator Model 33 37002 Series MiniTork II

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Baker Hughes Control Butterfly Valve with Actuator Model 33 37002 Series MiniTork II

Create an account to install this asset package.

Maintenance Plans for Baker Hughes Control Butterfly Valve with Actuator Model 33 Model 37002 Series MiniTork II

Integrate maintenance plans directly into your work orders in MaintainX.

Packing Box Maintenance

Packing box maintenance is one of the principal chores of routine servicing. Tightness of the packing is obtained through compression which is achieved by evenly tightening packing stud nuts (23A) against a packing flange (22). Care must be taken not to over tighten as this could prevent smooth operation of the valve. If all compression is used up and the valve leaks around the stem, new packing is required.

Note: If replacement of all packing is required, the valve must be disassembled. Refer to appropriate section. The following procedure should be used for temporary repairs only.

1. Loosen and remove packing flange stud nuts (23A).

2. Slide packing flange (22) and packing follower (8) down the shaft.

Note: As a temporary repair, it may be desirable to simply add more packing, since removal of any packing while the valve is assembled to the actuator is difficult. In addition, only one or two pieces of packing can be removed without disassembly. String packing, compatible with the service, can be used as a temporary repair, however it must be replaced with the correct packing as soon as possible.

3. Add or replace packing as desired.

4. Slide packing follower (8) and packing flange (22) back into position.

5. Replace and evenly tighten packing flange stud nuts (23A).

6. Place valve back in service and check for leaking.;

Run this procedure

Actuator Diaphragm Replacement

Type 33 OLD Version Actuator (produced up to year 1993) - refer to Figures 15 & 17

1. Isolate the valve, vent process pressure and shut off all electrical signal air and supply lines to the valve.

2. If equipped with a handwheel, it must be rotated to the disengaged position.

3. Remove air supply piping to upper diaphragm case (84).

4. Remove side covers (56).

5. Remove retaining rings (11) and remove pivot pin (12) and spacers (10) (handwheel only) to free rod end bearing (94).

6. Loosen and remove all short cap screws (86) and hex nuts (87).

7. Loosen each tension nut (96) approximately three full turns.

8. Continue loosening the tension nuts (96) evenly approximately three turns each time insuring that the upper diaphragm case (84) and diaphragm (85) continue to separate.
