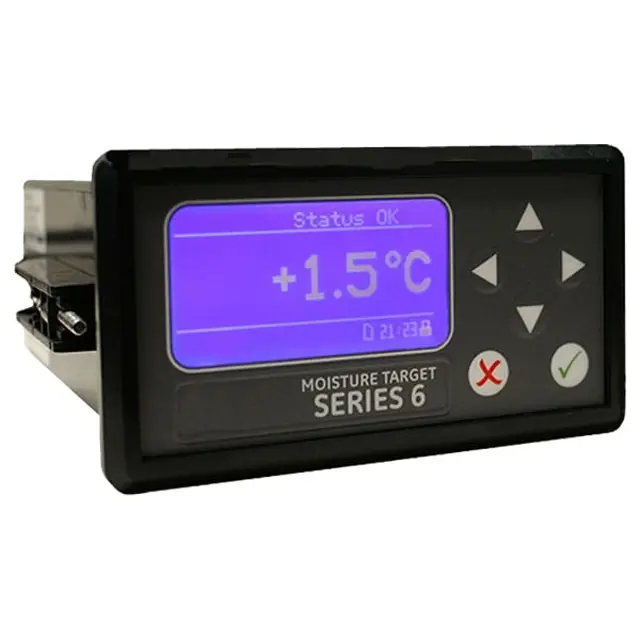

Baker Hughes Hygrometer Moisture Target Series 6

When necessary, use the procedure below to clean the front panel. You will need the following: • Clean, lint free cloth

• Cleaning solution (soap and warm water)

To clean the front panel: 1. Moisten the cloth with the cleaning solution.

2. Gently wipe the front panel clean.

3. Use a dry cloth to dry the front panel.;

For maximum accuracy, moisture probes should be returned to the factory for recalibration every 6–12 months, depending on the application. Under very severe conditions, more frequent calibrations are recommended However, under very mild conditions, less frequent calibrations are necessary. Contact a Panametrics applications engineer for your specific recommended calibration frequency All new or recalibrated moisture probes must be installed in accordance with the instructions in Chapter 2, Installation.

IMPORTANT: To maintain good contact at the terminal block and to avoid damaging the pins on the wiring connector, pull the connector straight off (not at an angle) the terminal block. Then, make the cable connections while the connector is off the unit. Finally, after the wiring is complete, push the connector straight onto the terminal block (not at an angle).;
