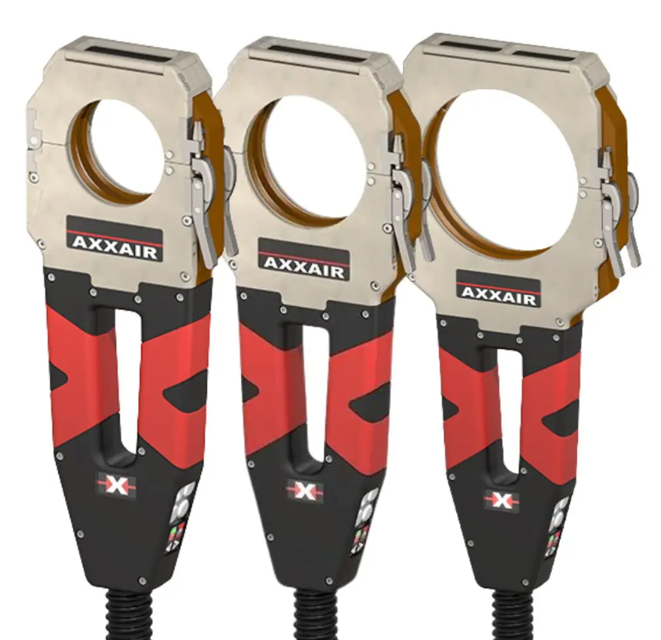

AXXAIR Closed Orbital TIG Welding Head SATFX52-CA01

Ensure the workbench is clean and flat

Cut off the general power supply of the machine

Disconnect the welding generator unit

Remove coolant connection and secure the 2 caps

Ensure the 4 red seals are left in place

Refer to the 'Electrodes' section of the 'Accessories' chapter to choose the correct electrode length.

Does the tube correspond to two different electrode sizes?

Choose the longest electrode for stability if applicable, ensuring it does not exceed the rotor teeth dimension.

Adjust the height of the arc carefully before placing the cassette on the element to be welded.

Is the tube shape more or less pronounced in ovality?

Increase the tube/electrode distance by a few tenths if in doubt.

Use the set of shims provided to make precise adjustments between the tube and the flat of the electrode.

Ensure the machine is live and operating

Perform a complete rotation of the welding machine rotor from the generator screen

Perform a complete rotation of the welding machine rotor from the buttons on the welding head

Check for any abnormal noise during operation

Did any abnormal noise occur during operation?

Ensure machine is powered down (main power disconnected)

Verify connectors are connected correctly

Inspect connectors and cables for traces of heating

Check for absence of dust, grease, and coolant on the rotation motor

Ensure there are no shocks to the rotation motor

Welding Head Connection Inspection

Ensure machine is powered down and main power is disconnected

Disassemble and Clean Welding Head

Completely disassemble the welding head

Perform a complete cleaning of the transmission from the motor to the rotor

Remove all traces of grease or other debris

Check the integrity of the pinions

Check the toothing for irregular wear, burrs, or sharp edges

Check the pinion fixings for axial and radial play
