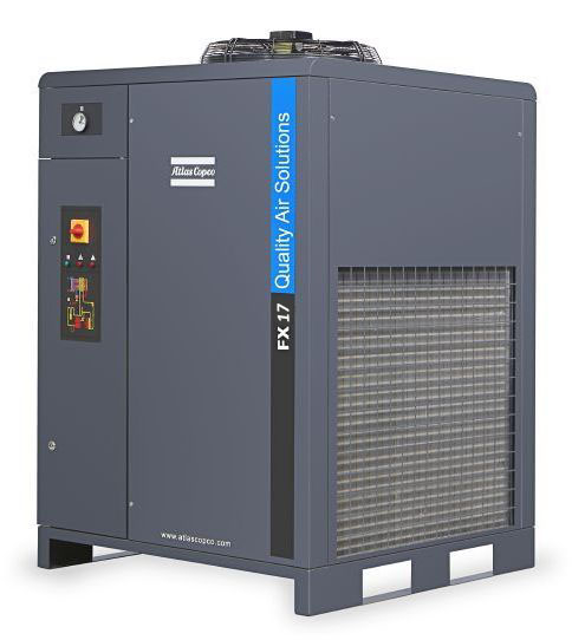

Atlas Copco Refrigerant Compressed Air Dryer FX19

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Refrigerant Compressed Air Dryer Model FX19

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Refrigerant Compressed Air Dryer Filter Cleaning

Warning: Contact of refrigerant with the skin will cause freezing. Special gloves must be worn.

Warning: Fluid refrigerant will also cause freezing of the eyes; safety glasses must hence be worn.

Warning: Refrigerant R410A is poisonous. Do not inhale refrigerant vapors. Check that the working area is adequately ventilated.

Warning: When removing the side panels of the dryer, be aware that internal elements such as the pipes can reach a temperature of 120 ̊C (248 ̊F). Therefore, wait until the dryer has cooled down before removing the side panels.

Warning: Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves.

Did you switch off the voltage and close the air inlet and outlet valves?

Did you wait until the dryer has cooled down before removing the side panels?

Did you check that the working area is adequately ventilated?

Did you wear safety glasses?

Run this procedure

1 Monthly Refrigerant Compressed Air Dryer Finned Surface Cleaning

Warning: Contact of refrigerant with the skin will cause freezing. Special gloves must be worn. In case of contact with the skin, the skin should be rinsed with water. On no account may clothing be removed.

Warning: Fluid refrigerant will also cause freezing of the eyes; safety glasses must hence be worn.

Warning: Refrigerant R410A is poisonous. Do not inhale refrigerant vapors. Check that the working area is adequately ventilated.

Warning: Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves.

Did you switch off the voltage and close the air inlet and outlet valves?

Did you wait until the dryer has cooled down before removing the side panels?

Did you check that the working area is adequately ventilated?

Did you wear safety glasses and special gloves?

Run this procedure

1 Yearly Refrigerant Compressed Air Dryer Check

Warning: Fluid refrigerant will also cause freezing of the eyes; safety glasses must hence be worn

Warning: Refrigerant R410A is poisonous. Do not inhale refrigerant vapors. Check that the working area is adequately ventilated

Warning: Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves
