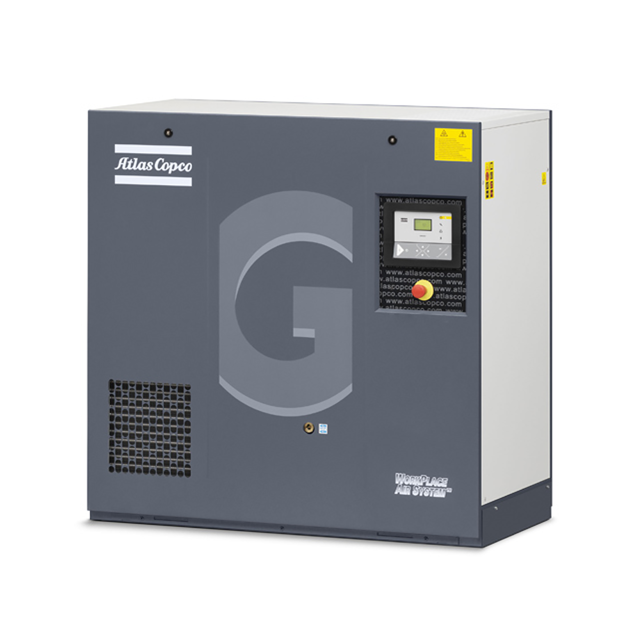

Atlas Copco Oil-Injected Rotary Screw Compressor GA5

Warning: Never remove the element while the compressor is running

For minimum downtime, replace the dirty element by a new one

Discard the element when damaged

Compressor stopped and voltage switched off?

Cover of air filter (AF) removed by turning it anti-clockwise?

Filter element removed and cover cleaned if necessary?

Air filter service warning reset?

Sign off on the air filter replacement

Refrigeration dryers of ID type contain refrigerant HFC. When handling refrigerant, all applicable safety precautions must be observed.

Contact of refrigerant with the skin will cause freezing. Special gloves must be worn. If contacted with the skin, the skin should be rinsed with water. On no account may clothing be removed.

Fluid refrigerant will also cause freezing of the eyes; always wear safety glasses.

Refrigerant is harmful. Do not inhale refrigerant vapours. Check that the working area is adequately ventilated.

Be aware that certain components such as the refrigerant compressor and the discharge pipe can become quite hot (up to 110 °C - 230 °F). Therefore, wait until the dryer has cooled down before removing the panels.

Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves.

Check if the working area is adequately ventilated.

Check if the dryer has cooled down before removing the panels.

Check that condensate is discharged during loaded operation

Drain condensate (compressed air receiver)

Check the pressure dew-point temperature (compressors with integrated dryer)

Sign off on the daily compressor check

Warning: Ensure the compressor is stopped and the voltage is switched off before proceeding

Enter the force F needed to create a deflection of 5 mm

Does the force F correspond to the data in the table?

Sign off on the belt tension check

WARNING! The operator must apply all relevant Safety precautions

Run the compressor until warm. Stop the compressor, close the air outlet valve and switch off the voltage

Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape

Wait 5 minutes and remove the oil separator (OS). Clean the seat on the manifold. Oil the gasket of the new separator and screw it into place. Tighten firmly by hand

Fill the oil tank (OT) with oil until the level reaches the middle of sight-glass (Gl)

Take care that no dirt drops into the system. Refit and tighten filler plug (FC)

Sign off on the oil separator replacement
