ABB Terra DC Wallbox ABB-MD Terra WB 24kW CDM +CCS

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

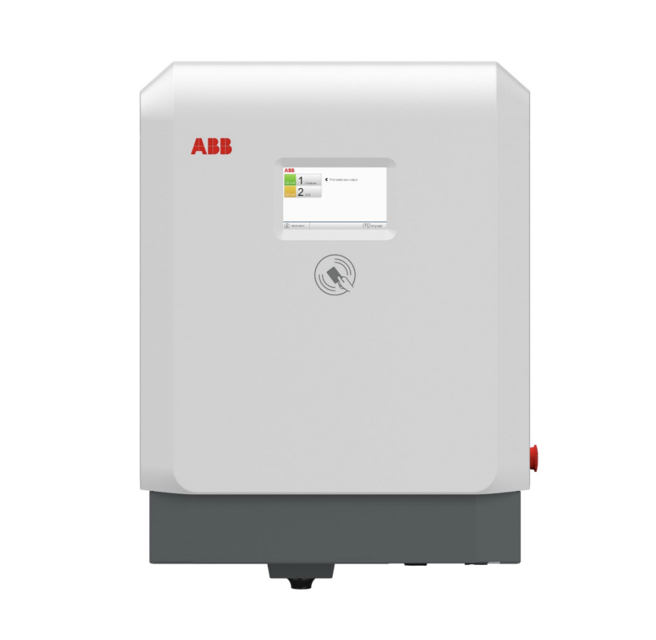

The ABB Terra DC Wallbox ABB-MD Terra WB 24kW CDM +CCS is a high-performance electric vehicle charging solution designed for commercial and public use. This advanced wall-mounted charger offers rapid charging capabilities, ensuring efficient energy delivery for various electric vehicles while maintaining reliability and safety standards.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Terra DC Wallbox ABB-MD Terra WB 24kW CDM +CCS

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Terra DC Wallbox ABB-MD Terra WB 24kW CDM +CCS

Create an account to install this asset package.

Maintenance Plans for ABB Terra DC Wallbox Model ABB-MD Terra WB 24kW CDM +CCS

Integrate maintenance plans directly into your work orders in MaintainX.

Periodic Terra DC Wallbox Maintenance

Following NFPA-70e procedures, de-energize unit, open cover

Inspect air filter, clean or replace as needed

Check input connections and terminations for proper toque values

Check Grounding resistance

Exercise input breaker and output DC breakers

Open HMI cover

Inspect capacitors and fuse connections

Clean interior with a HEPA vacuum

Blow out rear cooling fins and remove any debris

Run this procedure

4 Months Cabinet Cleaning

Warning: This cleaning procedure requires trained personnel with PPE!

Rough dirt removed by spraying with low-pressure tap water?

Neutral or weak alkaline cleaning solution applied and soaked?

Dirt removed by hand with a non-woven nylon hand pad?

Thoroughly rinsed with tap water?

Check on the coating and on the front cover for damage done?

Notice: If the Terra DC Wallbox Charger is exposed to rain, it is sufficient to clean it twice a year.

Caution: Do not apply high-pressure water jets. Water may leak into the Terra DC Wallbox Charger. If a high-pressure water jet has been used, ensure the inside of the Terra DC Wallbox Charger is dry.

Only cleaning agents with a pH value between 6 and 8 used?

Run this procedure
