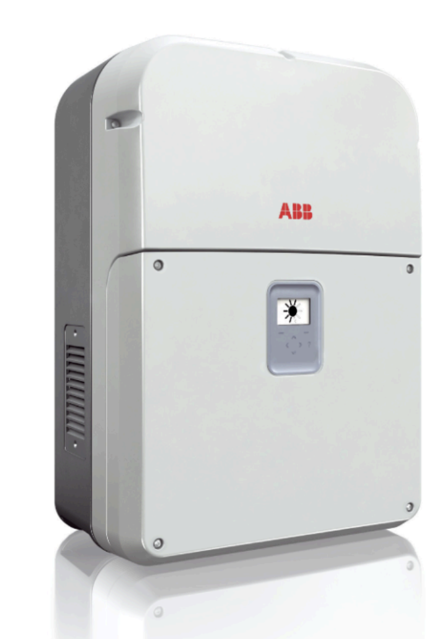

ABB String Inverter PRO-33.0-TL

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

The ABB String Inverter PRO-33.0-TL is a high-performance solar inverter designed for efficient energy conversion in photovoltaic systems. Known for its reliability and advanced features, this model ensures optimal power output and system monitoring, making it a preferred choice for solar energy applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB String Inverter PRO-33.0-TL

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB String Inverter PRO-33.0-TL

Create an account to install this asset package.

Maintenance Plans for ABB String Inverter Model PRO-33.0-TL

Integrate maintenance plans directly into your work orders in MaintainX.

1 Monthly Maintenance

- Read the event log. Use the control unit to read the recent event logs from the Events view. The events are kept in the memory until the memory is full. When the event memory is full, the inverter removes the oldest events.

- Make sure that the fans operate. Read the Events view for possible fan faults.The fans operate only when cooling is required. Replace the fan(s) when the inverter displays a fan fault or a replacement reminder.

- Examine the operating environment.Make sure that the inverter is in the intended operating environment. Make sure that the installation environment is clean, dry, and free of obstacles, and that the ambient temperature is not too high.

- Clean the operating environment. Clean the inverter installation space and mounting area regularly to remove dust and dirt. This prevents clogging of the fans and heat sink of the inverter.

- Make sure that the cables are correctly routed. Cables must be tidy, secure and in good condition.

- Make sure that the connectors are correctly connected and that they are in good condition.

- Make sure that the screw and spring terminal connections are tight.

(Yearly if the inverter is indoors with restricted access);
