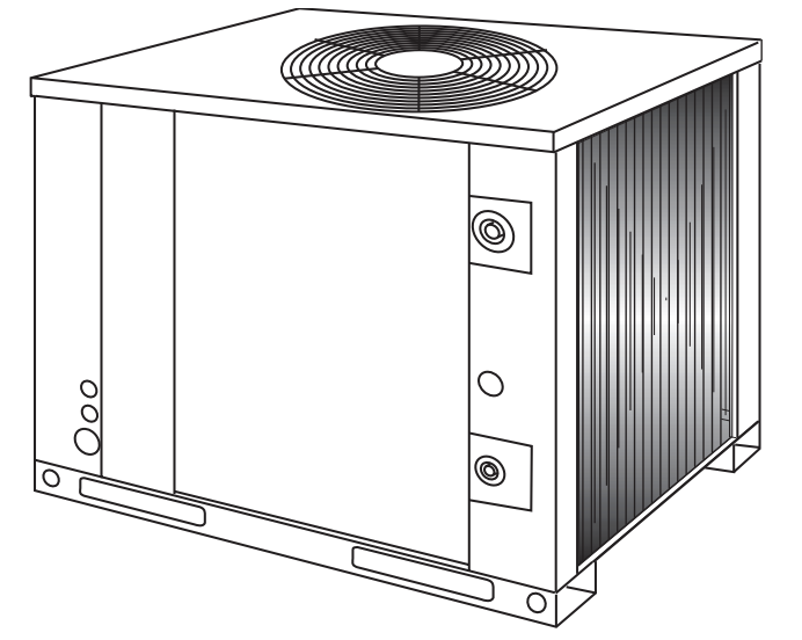

York Outdoor Condensing Unit H1CE120A25
Create an account to install this asset package.
Maintenance Plans for York Outdoor Condensing Unit Model H1CE120A25
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Maintenance
Maintenance
Ensure condenser surface is clean
Clean condenser surface with appropriate tools
Is the condenser surface free of dirt?
Lubrication
Verify fan motors have factory lubricated and sealed ball bearings
Do the fan motors require any maintenance?
Compressor Replacement
Contact local UPG Distribution Center for compressor or parts
Outdoor Unit Prestart Check
Crankcase Heater Preparation
Close the main disconnect switch to energize the crankcase heaters
Ensure the system switch on the room thermostat is OFF to prevent compressor start
Is the bottom of the compressor warm to the touch?
Pre-Start Check
Have sufficient clearances been provided?
Has all foreign matter been removed from the interior of the unit?
Have the condenser fans been rotated manually to check for free rotation?
Are all wiring connections tight?
