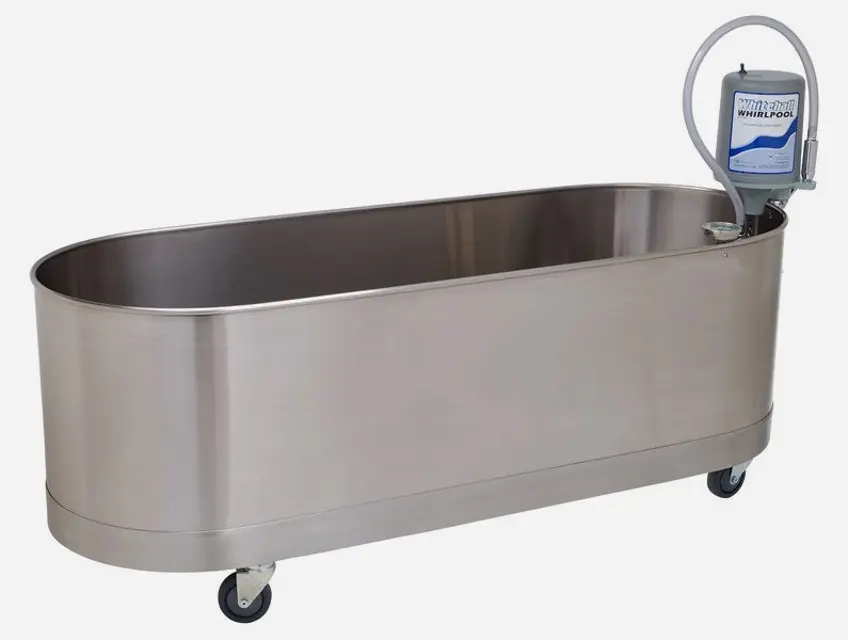

Whitehall Manufacturing Whirlpool WHL-75-M

Turn the turbine power switch (13) off to stop water circulation.

Draining without separate drain pump

Connect hose to drain valve (15) and open the drain valve.

Rotate pressure control valve (11) counterclockwise.

Lower the pump (12) to the bottom of the tub.

Place the stem tip of a calibrated thermometer next to the tip of the Whirlpool thermometer

Check if the Whirlpool thermometer reading matches the calibrated thermometer

Adjust the Whirlpool thermometer

Drain the tub following the draining instructions above.

For tubs greater than 75.7 L (20 US gallons), prepare the turbine

Fill the bucket or tub with water so the bottom of the turbine is at least 15.2 cm (6 inches) below the surface of the water.

Add a disinfectant solution to the water per manufacturer’s instructions.

Ensure the pressure control valve is in the open position.

Turn on the turbine for 5 seconds and turn it off.

Ensure no abrasive compounds or metal brushes are used

Ensure steel wool does not contact stainless steel surfaces

Avoid cleaning products with strong acids or halogens (chlorine, fluorine, bromine, iodine)

Select recommended cleaning materials

Cleaning and Disinfecting Procedure

Disinfect and clean the tub after each user

Disinfect and clean the thermometer after each user

Drain the tub following the draining instructions above.

Verify that the turbine is off.

Remove any loose objects or debris from the Whirlpool tub.

Use a stainless steel hard surface disinfectant per the manufacturer’s instructions.

Use a mild soap solution with one of the recommended cleaning materials.
