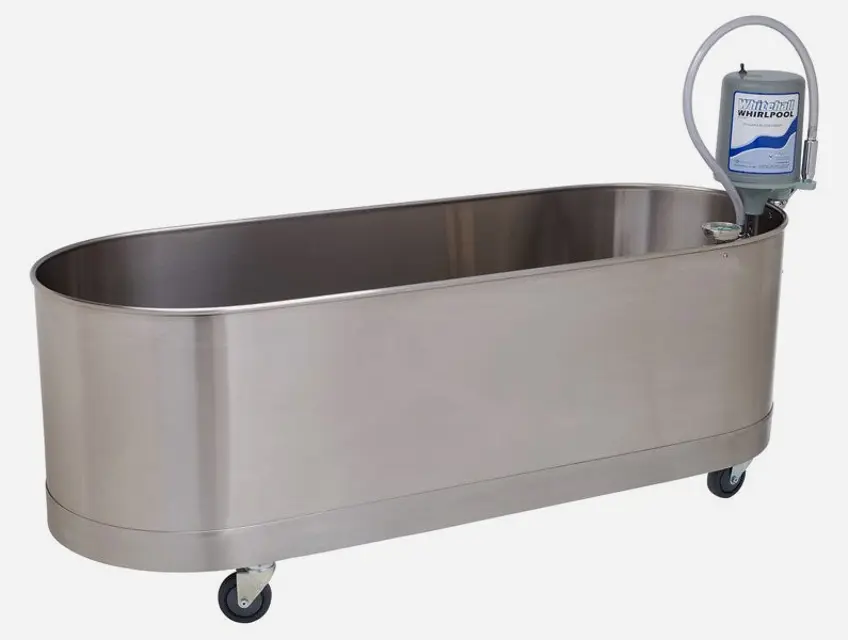

Whitehall Manufacturing Whirlpool WHE-27-M

Turn the turbine power switch (13) off to stop water circulation.

Draining without separate drain pump

Connect hose to drain valve (15).

Rotate pressure control valve (11) counterclockwise.

Ensure cleaning materials are ready

Disinfect and clean the tub after each user

Disinfect and clean the thermometer after each user

Disinfect and clean the turbine after each user

Avoid using abrasive compounds or metal brushes

Ensure steel wool does not contact stainless steel

Drain the tub following the draining instructions above.

Verify that the turbine is off.

Remove any loose objects or debris from the Whirlpool tub.

Select the cleaning material used for disinfecting

Disinfect the tub using the selected material per the manufacturer’s instructions.

Select the cleaning material used for cleaning

Clean the tub using the selected material.

Fill the tub with water to immerse the thermometer tip at least 10.2 cm (4 inches) deep.

Place the stem tip of a calibrated thermometer next to the tip of the Whirlpool thermometer.

Is the reading on the Whirlpool thermometer the same as the calibrated thermometer?

Adjust the external adjustment screw (a) to match the Whirlpool thermometer reading with the calibrated thermometer, if necessary.

Ensure re-calibration is performed at least every 12 months or as needed.

Drain the tub following the draining instructions above.

For tubs greater than 75.7 L (20 US gallons), prepare the turbine

Fill the bucket or tub with water so the bottom of the turbine is at least 15.2 cm (6 inches) below the surface of the water.

Add a disinfectant solution to the water per manufacturer’s instructions.

Ensure the pressure control valve is in the open position.

Turn on the turbine for 5 seconds and turn it off.
