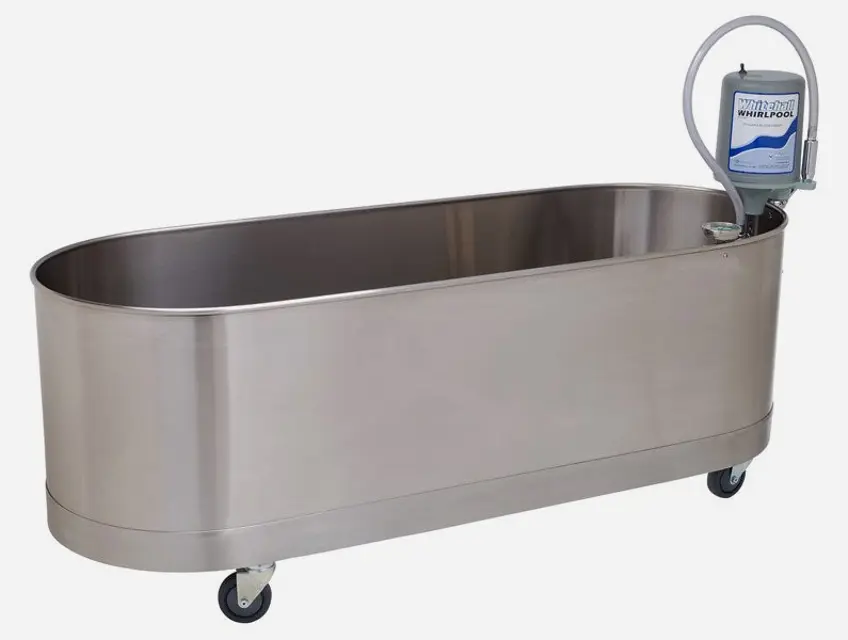

Whitehall Manufacturing Whirlpool WHE-22-M

Drain the tub following the draining instructions above.

For tubs greater than 75.7 L (20 US gallons), prepare the turbine

Fill the bucket or tub with water so the bottom of the turbine is at least 15.2 cm (6 inches) below the surface of the water.

Add a disinfectant solution to the water per manufacturer’s instructions.

Ensure the pressure control valve is in the open position.

Turn on the turbine for 5 seconds and turn it off.

Turn the turbine power switch (13) off to stop water circulation

Draining without separate drain pump

Connect hose to drain valve (15)

Rotate pressure control valve (11) counterclockwise

Ensure cleaning materials are ready

Avoid using abrasive compounds or applicators such as metal brushes

Ensure steel wool does not come in contact with stainless steel

Avoid cleaning products with strong acids or halogens (chlorine, fluorine, bromine, iodine)

If strong products were used, was the exposure brief (less than 15 minutes)?

Thoroughly rinse stainless steel surfaces of all residue after using strong products

Place the stem tip of a calibrated thermometer next to the tip of the Whirlpool thermometer

Check if the Whirlpool thermometer reading matches the calibrated thermometer

Adjust the Whirlpool thermometer

Drain the tub following the draining instructions above.

Verify that the turbine is off.

Remove any loose objects or debris from the Whirlpool tub.

Select the cleaning material used for disinfecting

Disinfect the tub using the selected cleaning material.

Select the cleaning material used for cleaning

Clean the tub using the selected cleaning material.
