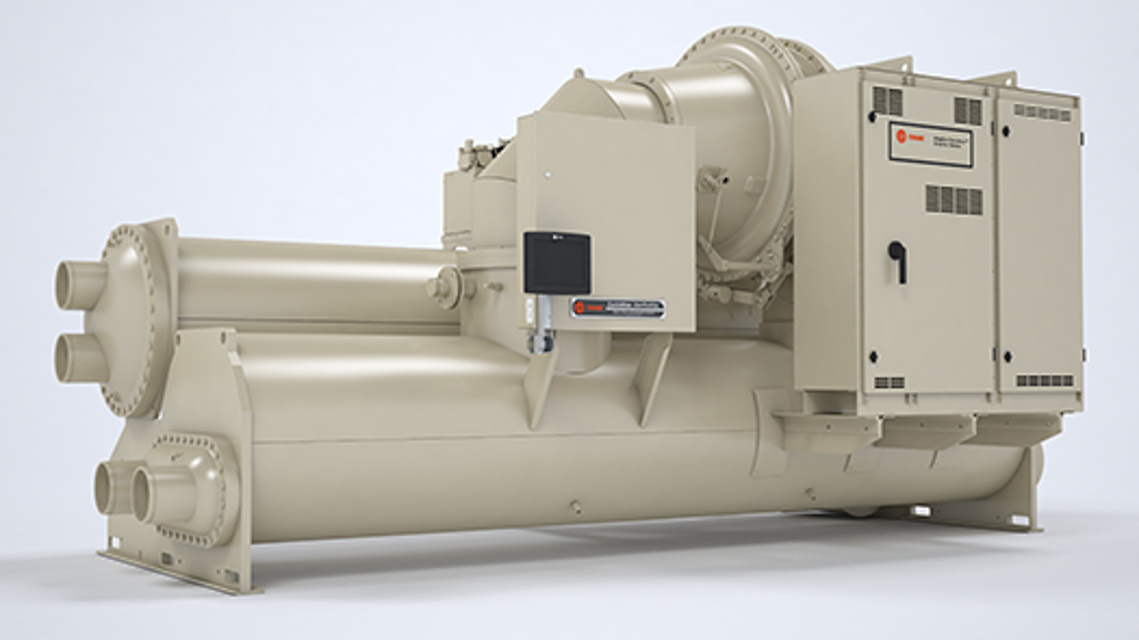

Trane CenTraVac™ Water-Cooled Chiller CVHF - 350-910 - 957 - 142L / 142L

Clean all water strainers in the water piping system

Inspect waterbox coatings within the first 1–3 months to determine a required maintenance schedule for your job site

Inspect waterbox anodes within the first 1–3 months to determine a required maintenance schedule for your job site

Sign off on the 3 Monthly Chiller Maintenance

- Shut down the chiller once each year to check the items of Starter or Adaptive FrequencyTM Drive

2. Check all connections per manufacturer specifications

3. Follow all manufacturer recommendations for starter or Adaptive FrequencyTM Drive (AFD) maintenance

4. Inspect/clean/service the AFD cooling system (water- or air-cooled AFD)

5. Record all applicable starter or starter component settings;

- Shut down the chiller once each year to check the items of Exterior

2. Clean and touch-up painted surfaces as needed

3. Repair deteriorated, torn, or missing insulation;

- Shut down the chiller once each year to check the items of Condenser

1. Inspect for fouling and scaling in tubes

2. Check operation of condenser water flow sensing device

3. Factory recommendation to eddy current test tubes every three years;

- Check the chiller’s evaporator and condenser pressures, oil tank pressure, differential oil pressure, and discharge oil pressure

- Compare the readings with the values provided in the general maintenance

- Check the oil level in the chiller oil sump using the two sight glasses provided in the oil sump head. When the unit is operating, the oil level should be visible in the lower sight glass

- Complete logs on a daily basis.
