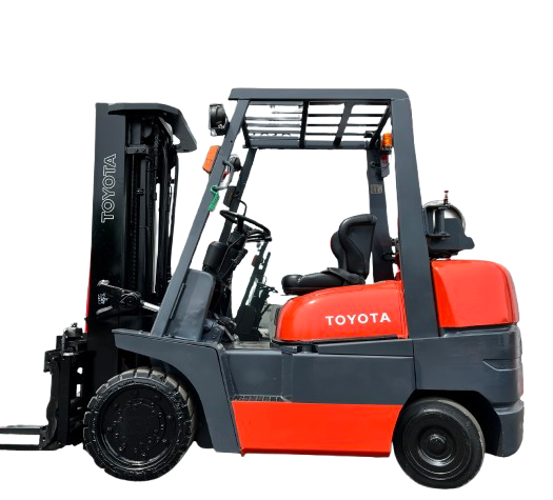

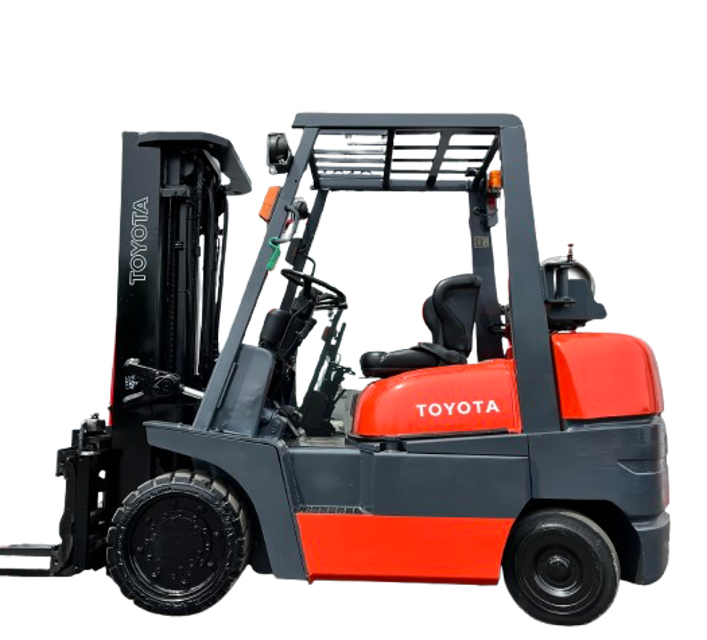

Toyota Forklift 6FDN30
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 6FDN30 is a robust industrial asset designed for efficient material handling. Known for its reliability and performance, this forklift model excels in various applications, making it a preferred choice in warehouses and manufacturing facilities. Regular maintenance ensures optimal operation and longevity.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 6FDN30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 6FDN30
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 6FDN30
Integrate maintenance plans directly into your work orders in MaintainX.
170 Hour / 1 Month Steering System Maintenance
Inspect for play and looseness in the steering wheel
Inspect the function of the steering wheel
Inspect gear box for oil leak
Retighten looseness of mounting of the gear box
Inspect rod, links and arm for looseness and damage
Inspect for oil leaks in the power steering
Inspect power steering for looseness in mounting and linkage
Inspect knuckle for king pin looseness
Sign off on the steering system maintenance
2000 Hour / 12 Month Maintenance
Inspect cracks at fork root and welded part while forklift is new
Inspect wear and damage of mast support bushing
Inspect wear and damage of roller pins
Measure relief pressure in oil control valve
Inspect plug cord internal discontinuity
Inspect damage and cracks of frame, cross members, etc.
Retighten body bolt looseness
Sign off on the 2000 Hour / 12 Month Maintenance
500 Hour / 3 Month Maintenance
Retighten loose joint in propeller shaft and axle shaft
Replace engine oil filter
Replace engine coolant
Sign off on the maintenance
2000 Hour / 12 Month Replacement
Transmission oil replaced
Differential oil replaced
Wheel bearing grease replaced
Air cleaner element replaced
Cups and seals for brake master and wheel cylinders replaced
Sign off on the replacement procedure
2 Year Replacement
Select the parts replaced
Note: Chains are replaced every 3 years
Sign off on the replacement procedure
Parts for Toyota Forklift 6FDN30
Access the parts list for your equipment in MaintainX.
Brake Shoe Return Spring Remover
09717-20010
Front Axle Bearing Replacer
09370-10170-71
King Pin Needle Bearing Remover And Replacer
09420-20150-71
Wear Scale Chain
09631-22000-71
Cylinder Cap Remover And Replacer
09620-10160-71
Brake Shoe Return Spring Remover
09717-20010
Front Axle Bearing Replacer
09370-10170-71
King Pin Needle Bearing Remover And Replacer
09420-20150-71
Wear Scale Chain
09631-22000-71
Cylinder Cap Remover And Replacer
09620-10160-71
Brake Shoe Return Spring Remover
09717-20010
Front Axle Bearing Replacer
09370-10170-71
King Pin Needle Bearing Remover And Replacer
09420-20150-71
Wear Scale Chain
09631-22000-71
Cylinder Cap Remover And Replacer
09620-10160-71
