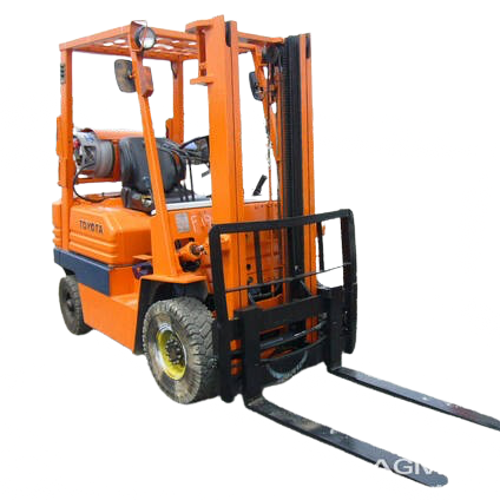

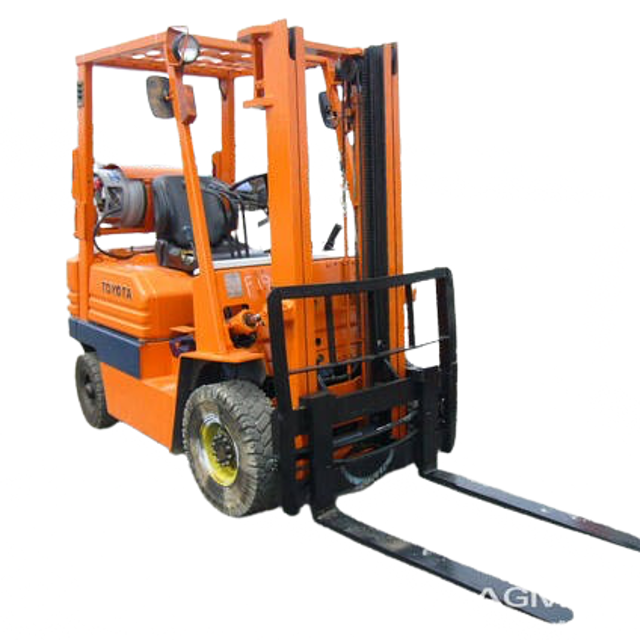

Toyota Forklift 5FG10

Inspect loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Measure natural drop and natural forward tilt

Inspect for oil leaks and damage in the cylinder

Inspect for wear and damage of the pin and cylinder bearing

Inspect for oil leaks and abnormal sound from the oil pump

Measure play and reserve in the brake pedal

Inspect the braking effect of the brake pedal

Inspect the operating force of the parking brake

Inspect the braking effect of the parking brake

Inspect for looseness or damage in the parking brake rod and cable

Inspect for leaks, damage, and mounting condition of the brake pipe

Inspect for leaks and fluid level in the reservoir tank

Measure clearance between drum and lining

Sign off on the braking system maintenance

Measure injection timing in fuel system

Inspect draining of sedimenter in fuel system

Inspect oil clutch mechanism function and leak

Measure stall and hydraulic pressure in torque converter and transmission

Clean hydraulic oil tank and oil strainer

Sign off on the 1000 Hours / 6 Months Maintenance

Inspect head guard for cracks at welded portions

Inspect head guard for deformation and damage

Retighten for loosening of mounting in the back-rest

Inspect back-rest for deformation, cracks, and damage

Inspect the function and mounting condition of the lighting system

Inspect horn function and mounting condition

Inspect the function and mounting condition of the direction indicator

Inspect the functions of the instruments

Inspect the function and mounting condition of the backup buzzer

Tighten loose joint in propeller shaft and axle shaft
