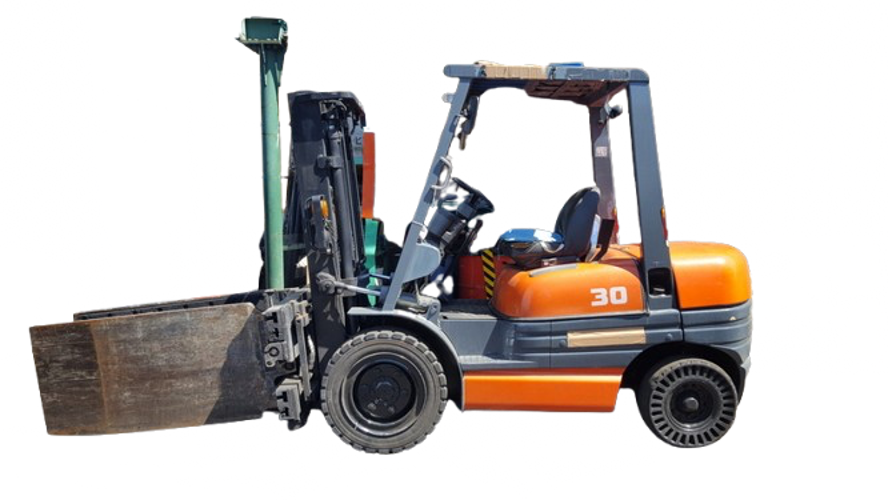

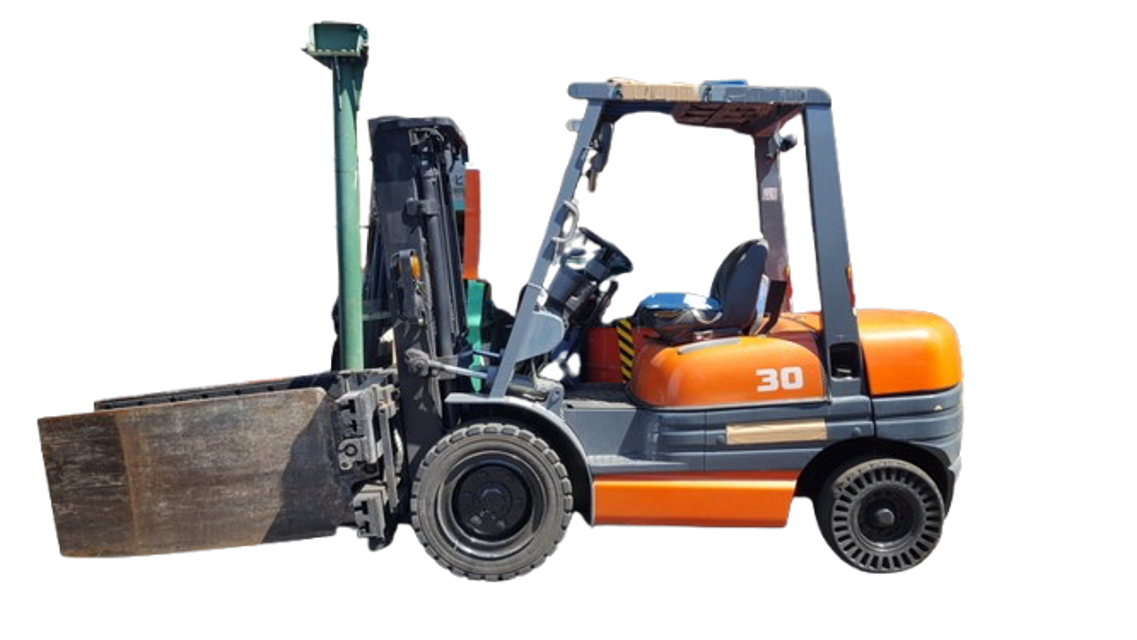

Toyota Forklift 02 - 6FD30

Inspect loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Measure natural drop and natural forward tilt

Inspect for oil leaks and damage in the cylinder

Inspect for wear and damage of the pin and cylinder bearing

Inspect cylinder for uneven movement

Inspect for oil leaks and abnormal sound from the oil pump

Retighten loose joint in propeller shaft and axle shaft

Measure tire inflation pressure of the wheels

Inspect for tire cuts, damage, and uneven wearing

Tighten for loose rim and hub nuts

Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

Inspect rim, side bearing, and disc wheel for damage

Inspect for abnormal sound and looseness in the front wheel bearing

Inspect for abnormal sound and looseness in the rear wheel bearing

Sign off on the drive system maintenance

Measure play and reserve in the brake pedal

Inspect the braking effect of the brake pedal

Inspect the operating force of the parking brake

Inspect the braking effect of the parking brake

Inspect for looseness or damage in the parking brake rod and cable

Inspect for leaks, damage, and mounting condition of the brake pipe

Inspect for leaks and fluid level in the reservoir tank

Measure clearance between drum and lining

Sign off on the braking system maintenance

Inspect clutch for abnormal sound and functioning

Inspect clutch master cylinder function and leak

Inspect transmission fluid level

Inspect transmission gear function and abnormal noise

Inspect for leaks in the differential
