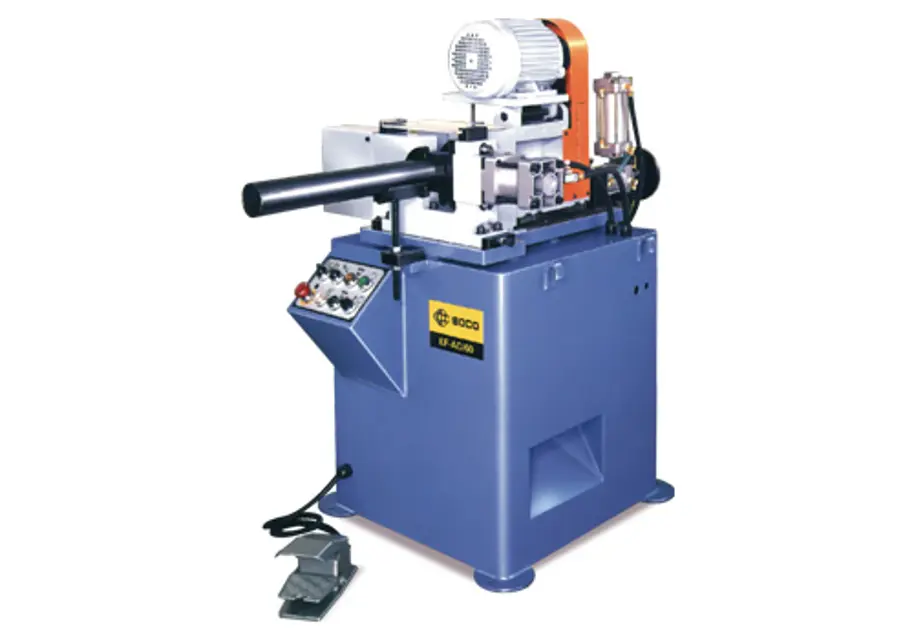

SOCO Machinery End Finishing Machine EF-AC/60

Release 3 pieces of the fixing screw

Take off the tool head from the spindle

Replace a new tool head on to the spindle

Tighten 3 pieces of the fixing screw

Sign off on the tool head replacement

Generally, there are 3 sets of tool seat and cutting bit of

(3) inside wall chamfering, on a standard tool head.

For special propose, the number of set of tool seat and cutting bit may be 1 or 2 or 4, depending on the requirement of the shape to be finished.

Here, a tool head with 3 sets of tool seat and cutting bit is used as an example to illustrate the adjustment procedure.

Adjustment these cutting bits shall be as the following sequence.

7.1 Adjustment of tool seat and cutting bit for end facing
