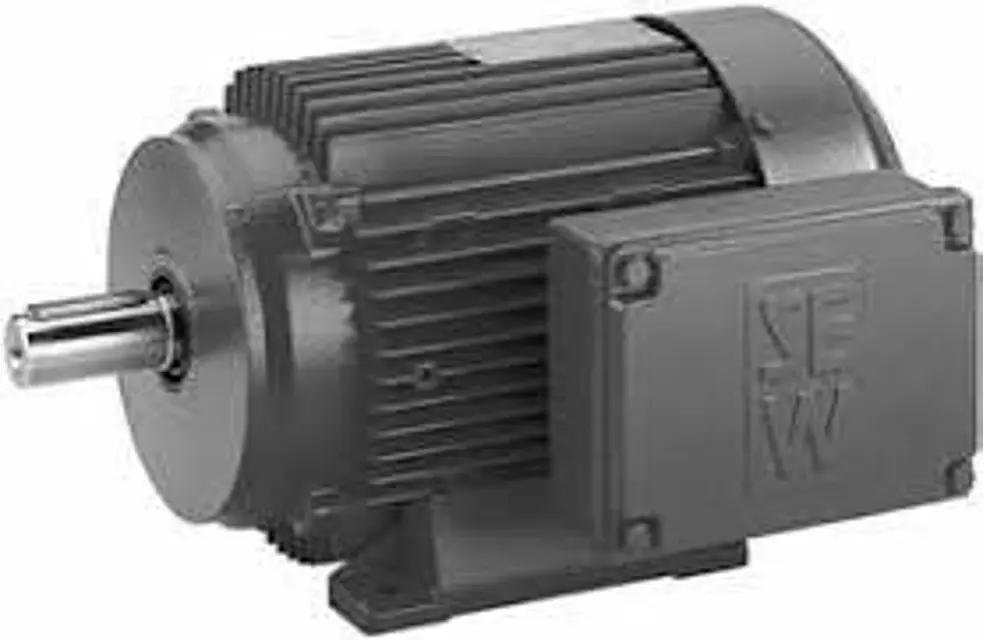

SEW eurodrive Electric Motor DV100M4

Create an account to install this asset package.

Maintenance Plans for SEW eurodrive Electric Motor Model DV100M4

Integrate maintenance plans directly into your work orders in MaintainX.

10000 Hourly Motor Maintenance

8.1 Inspection and maintenance intervals

Isolate the motor and brake from the supply before starting work, safeguarding them against unintentional power-up

Inspect the motor

8.3 Inspection / maintenance on the motor

Remove the forced cooling fan and encoder, if installed

Remove flange or fan guard, fan

Remove the hex head bolt from the drive end bearing end shield and the non-drive end bearing end shield, release the stator from the drive end bearing end shield

For motors with BM/BMG brake: open the terminal box cover, unfasten the brake cable from the rectifier; push the non-drive end bearing end shield and the brake off the stator and carefully lift them off

For motors with BMG02, BR03 brake: remove the complete brake with the releasing lever

Run this procedure

Initial Startup Check

6.1 Prerequisites for startup

Before startup, ensure the following conditions are met

During startup, ensure the following conditions are met

Run this procedure

2 Yearly Brake Inspection

8.1 Inspection and maintenance intervals

Use only genuine spare parts in accordance with the valid parts list

Install a new brake control system when replacing the brake coil

Ensure motors are not hot to avoid danger of burns

Secure hoist drives or lower them to prevent danger of falling

Isolate the motor and brake from the supply to prevent unintentional power-up

Inspect brake types if used as a holding brake

Document inspection intervals based on project planning documents

Inspection Procedure

Run this procedure

Braking Torque Adjustment

Changing the braking torque for BR03 brake

Isolate the motor and brake from the supply, safeguarding them against unintentional power-up

Unscrew the hand lever, remove the fan guard and the fan

Loosen the screws and remove the complete brake with the releasing lever

Loosen the screws and remove the guide ring with friction plate, brake disc, pressure plate and damping plate

Remove the brake springs from the brake coil body and replace them with new ones

Position the new brake springs symmetrically

Slide the damping plate over the two studs attached to the pressure plate so the embossing pattern is located with the projecting side facing the pressure plate

Place the pressure plate on the brake springs together with the damping plate; guide the studs attached to the pressure plate through the holes in the brake coil body and ensure correct positioning

Run this procedure

Motor and Brake Maintenance

8.2 Preliminary work for motor and brake maintenance

Isolate the motor and brake from the power supply

Remove the EV1. incremental encoder / AV1H absolute encoder

Remove incremental encoder ES1. / ES2. / EH1.

Removing the proximity sensor NV1. / NV2.

Ensure the fan wheel is stationary

Remove the proximity sensor NV1. / NV2.

Ensure the switching surface of the proximity switch is calibrated to a distance of 3.5 mm from the edge of the prismatic block if the mounting block has been removed or come loose during re-assembly

Run this procedure
