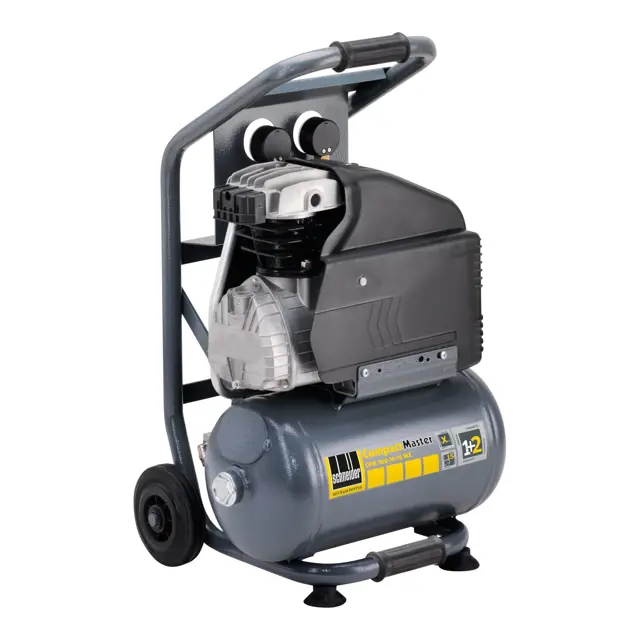

Schneider Electric Schneider Electric Air Compressor CPM 260-10-10 WX CPM 260-10-10 WX
Need answers fast?
Explore the manual using AI.
The Schneider Electric Air Compressor CPM 260-10-10 WX is a robust industrial air compressor designed for high efficiency and reliability. Ideal for various applications, this model ensures optimal performance with regular maintenance and quality spare parts, making it a preferred choice for industrial operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Schneider Electric Schneider Electric Air Compressor CPM 260-10-10 WX CPM 260-10-10 WX
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Schneider Electric Schneider Electric Air Compressor CPM 260-10-10 WX CPM 260-10-10 WX
Create an account to install this asset package.
Maintenance Plans for Schneider Electric Schneider Electric Air Compressor CPM 260-10-10 WX Model CPM 260-10-10 WX
Integrate maintenance plans directly into your work orders in MaintainX.
2 Yearly Maintenance
2.6.7 Changing/adding oil
1. Allow the compressor to warm up, switch it off, disconnect the power supply.
2. Pull out the oil filler plug/oil dipstick (item 03), hold the used oil container under the oil filler plug (item 04), screw open the oil drain screw, drain used oil completely.
3. Screw the oil drain screw closed.
4. Add the prescribed quantity of oil.
5. Check the oil level, correct if necessary. Insert the oil filler plug or oil dipstick.
6. Dispose of used oil according to applicable regulations.
2.6.10 Checking, adjusting the V-belt tension
V-belt driven compressors:
6 Monthly Maintenance
2.6.7 Changing/adding oil
1. Allow the compressor to warm up, switch it off, disconnect the power supply.
2. Pull out the oil filler plug/oil dipstick (item 03), hold the used oil container under the oil filler plug (item 04), screw open the oil drain screw, drain used oil completely.
3. Screw the oil drain screw closed.
4. Add the prescribed quantity of oil.
5. Check the oil level, correct if necessary. Insert the oil filler plug or oil dipstick.
6. Dispose of used oil according to applicable regulations.
2.6.9 Cleaning the intake filter
1. Unscrew the intake filter. (Fig. 5a)
Yearly Maintenance
2.6.7 Changing/adding oil
1. Allow the compressor to warm up, switch it off, disconnect the power supply.
2. Pull out the oil filler plug/oil dipstick (item 03), hold the used oil container under the oil filler plug (item 04), screw open the oil drain screw, drain used oil completely.
3. Screw the oil drain screw closed.
4. Add the prescribed quantity of oil.
5. Check the oil level, correct if necessary. Insert the oil filler plug or oil dipstick.
6. Dispose of used oil according to applicable regulations.
2.6.8 Check screw fittings
1. Check all screw connections for tight fit and retighten if necessary.
Weekly Cleaning
2.6.9 Cleaning the intake filter
1. Unscrew the intake filter. (Fig. 5a)
2. Clean the filter insert using the blow gun, exchange the filter insert if necessary.
3. Screw the intake filter back on.;
10 Hours Check
2.6.8 Check screw fittings
1. Check all screw connections for tight fit and retighten if necessary.
2. Observe the tightening torques (tightening torques calculated according to VDI 2230).;
