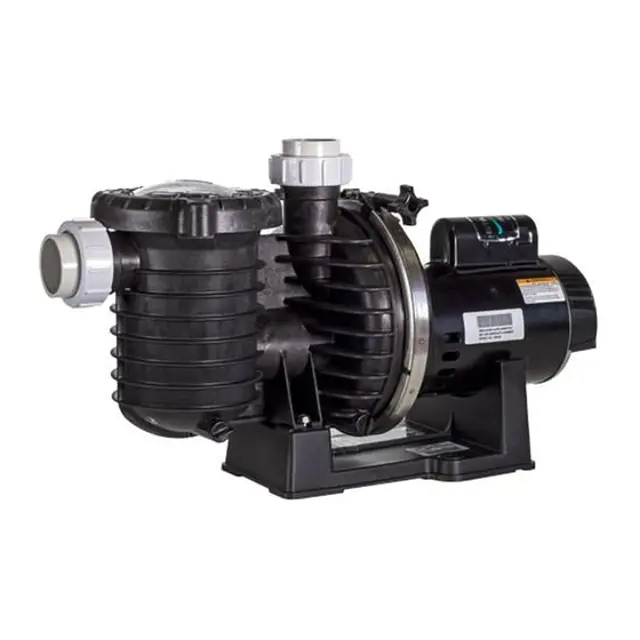

Pentair Centrifugal Pump P6R6F-207L

Acknowledge understanding of the warning regarding air purging and freezing risks

Preparation for Freezing Temperatures or Long-term Storage

Drain all water from pump and piping

Keep motor dry and covered during storage

Is the pump covered with plastic?

Outdoor/Unprotected Installations

Gravity drain system as far as possible

Protect areas which retain water with non-toxic propylene glycol antifreeze

Ensure the pump is not operating without water in the strainer pot.

Verify that the strainer pot temperature is cool to touch before opening.

Close valves in suction and discharge.

Release all pressure from the system.

Remove trap cover handle ring by turning counterclockwise.

Turn OFF power to motor before draining pump

Pump down water level below all inlets to the pool

Use low pressure air to blow accumulated water from the piping system

Cap inlet piping after draining to keep water out of the pipes

Remove trap cover and drain the tank body through the drain plugs

Describe any observed cracks, damage, or advanced weathering on the covers

Is any cover loose, cracked, damaged, broken, or missing?

Immediate Actions if Issues Found

Close the pool or spa immediately

Post a notice about the closure

Keep the pool or spa closed until an appropriate certified cover is properly installed

Check if all suction outlet covers are maintained and screw-fastened correctly
