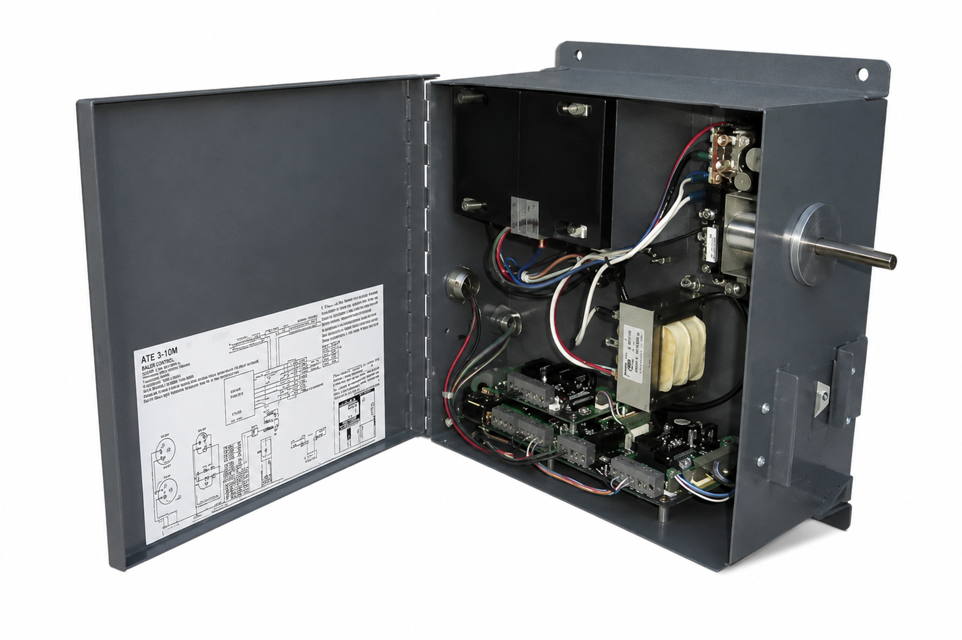

Overhead Door Corporation Release System FSBX-120VAC

Ensure all personnel are clear of the door and moving parts

Clear any objects from the door path

Prohibit traffic through the door opening while testing

Initial Setup and Troubleshooting

Turn ON power to the FSBX or FSCX and turn OFF power to the motor operator (if applicable)

Turn RTP to RESET, then NORMAL, to silence the troubles

Remove the Armature from the Retaining Bracket and align it with the Supervised Electromagnet

Mechanical Release Test with External Power

Place door in fully closed position

Disconnect all power from system and system components, including motors

Replace the following batteries

Ensure all batteries are replaced with proper replacement parts as per list on page 25

Dispose of old batteries in accordance with Federal, State, and Local Regulations
