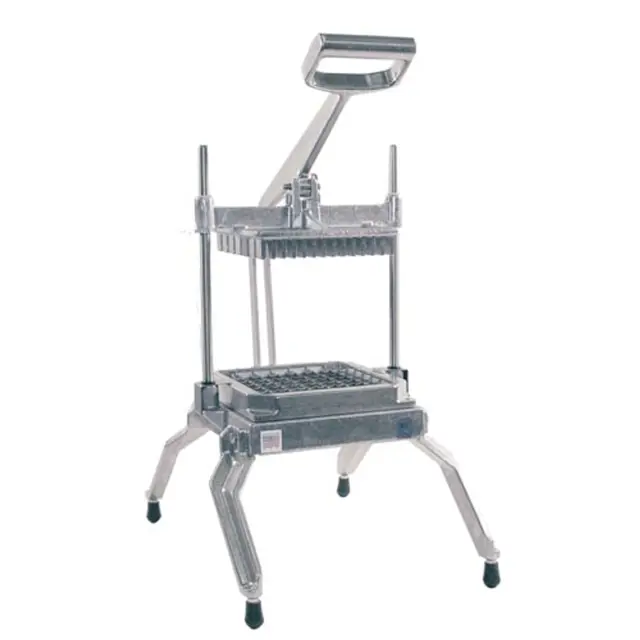

Nemco Food Equipment Cut Easy LettuceKutter N55650-1

Loosen all of the screws at the front of the BLADE AND HOLDER ASSEMBLY

Remove the screws and also the screws at the rear of the assembly

Remove the tension rods to release the BLADES

Install replacement BLADES into the TENSION BLOCKS with the sharp side of the BLADES and the grooves in the TENSION BLOCK up

Lay the BLADE HOLDER on a table with the bottom side upward

Place the BLADES with the TENSION BLOCKS installed into the BLADE HOLDER with the sharp side of the BLADES downward

Install BEARING PLATES on the screws and install the screws into the BLADE HOLDER

Loosely install all of the screws into the TENSION BLOCKS

Tighten the screws at the back (notched) side of the BLADE HOLDER

Warning: Ensure the machine is turned off and unplugged before starting the cleaning process.

PUSH PLATE lifted off the GUIDE RODS

HOLD DOWN CLIPS released and raised

BLADE AND HOLDER ASSEMBLY lifted off the FRAME

Note: The BLADE AND HOLDER ASSEMBLY can be totally disassembled for cleaning by removing the machine screws on the underside

BLADE AND HOLDER ASSEMBLY disassembled for cleaning

Reassembled by reversing the above procedure
