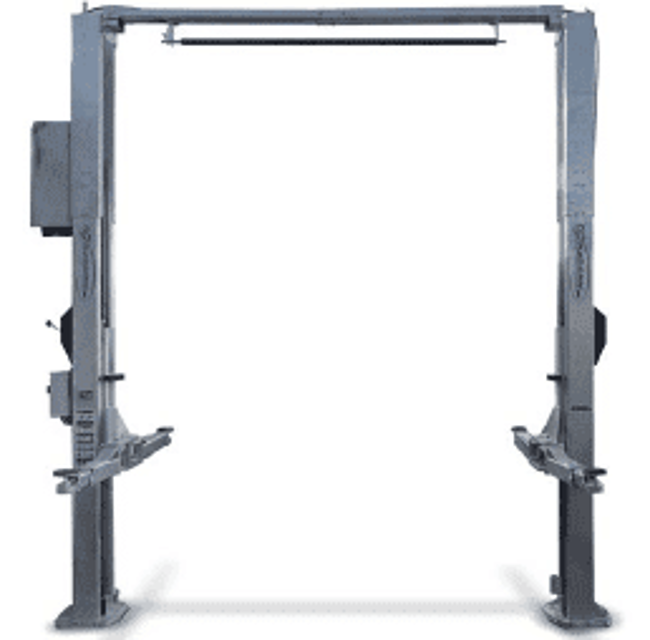

Bradbury Wash Bay Hoist SB45

Sign off on the service completion

- Replace the carriage guide every 3 years.

- Replace the electrical components every 3 years.

- Replace the piston seal kit every 3 years.

- Replace the load seal kit every 3 years.

Warning: This procedure should only be performed by trained personnel.

Raise each carriage by approx. 30mm using a trolley jack and a suitable extension.

Manually release the lock pawls and fix them mechanically.

Lock pawls released and fixed successfully?

Remove the trolley jack and extension. Repeat this operation on the opposite carriage.

Trolley jack and extension removed from both carriages?

Switch off the mains and switch off the lockable main switch on the control panel.

- Visually inspect the wire rope for abrasion, deformation, and signs of wire breakage. Replace if any damage is observed.

- Visually inspect the leaf chain for abrasion and deformation. Replace if worn or damaged.

- Visually inspect for signs of abrasion. Replace the component if abnormal wear is detected.

- Visually check the operation of the arm lock axle. If function is compromised, replace the axle.

- Visually inspect the housing for proper lock operation. Replace if the lock is not functioning properly.

- Visually inspect the dust-proof rubber for abrasion and deformation. Replace if degraded.

Remove the oil tank from the pump

Check the condition of the pump filter

Choose the action taken on the pump filter

Sign off on the oil tank maintenance
