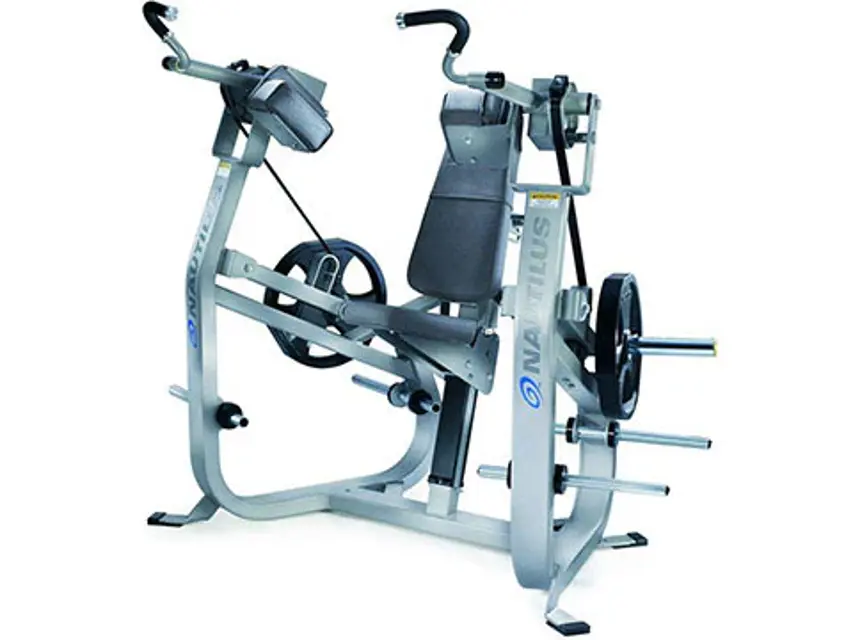

Nautilus Training Machine P3BC

Pull Quick-Release shielding away from the frame

Use a proper screwdriver to remove shield attached with screws

Tighten screws snugly using correct Phillips screwdriver

Inspect all rotation points for wear and tear

Lubricate rotation points if necessary

Clean all outside surfaces with non-abrasive, non-chlorinated household cleaners

Cleaning and Care of Painted Surfaces

Wipe painted surfaces with a damp cloth and car wax

Upholstery Cleaning and Protection

Keep pads free of perspiration at all times

Clean and disinfect upholstery at the end of each day

Use Virex® II disinfectant cleaner for upholstery care

Cleaning and Care of Painted Surfaces

Wipe painted surfaces with a damp cloth and car wax

Let dry and buff with a dry cloth

Describe factors affecting maintenance frequency

Spot Check Loose Nuts and Bolts

Carefully check rotation points

Tighten loose parts immediately

Check for worn parts, seatbelts and upholstery pads

Tighten bolts on upholstery pads with a 9/16" combination wrench

Clean all outside surfaces with non-abrasive, non-chlorinated household cleaners.

Wipe painted surfaces with a damp cloth and car wax.

Let painted surfaces dry and buff with a dry cloth.

Lubrication and Cleaning of Guide Rods

Apply TFL #50 wet lubricant to a clean cloth.

Use the cloth to wipe and lubricate the guide rods.

Ensure hydraulic cylinders are not lubricated.
