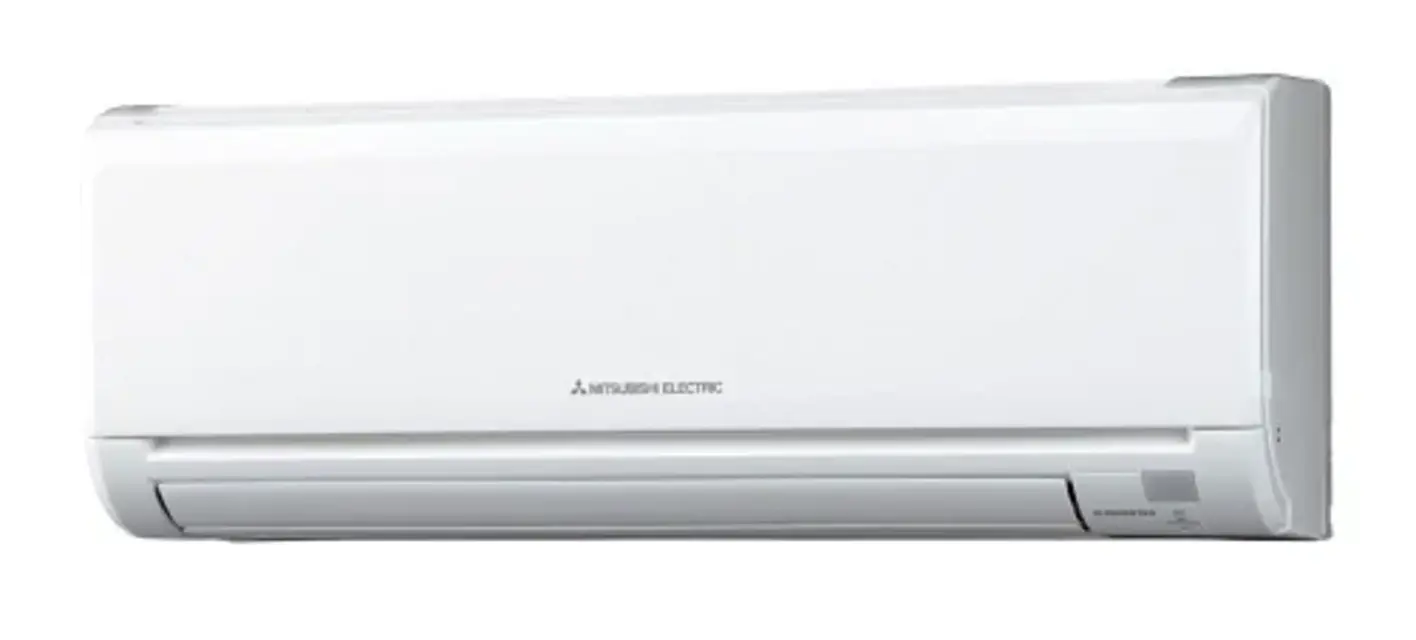

Mitsubishi Mitsubishi Air Conditioner (Indoor Unit) PKA-A24KA4 PKA-A24KA4

Caution: In removing the filter, precautions must be taken to protect your eyes from dust. Also, if you have to climb up on a stool to do the job, be careful not to fall.

When the filter is removed, do not touch the metallic parts inside the indoor unit, otherwise injury may result.

Using both hands, pull both the bottom corners of the intake grille to open the grille, then lift the filter until it clicks at the stop position.

Hold the knobs on the filter and pull the filter up, then pull it out downward.

Sign off on the filter replacement

Warning: Before you start cleaning, stop operation and turn OFF the power supply.

Clean the filters using a vacuum cleaner or tap the filters against a solid object to knock off dirt and dust.

If the filters are especially dirty, wash them in lukewarm water.

Caution: Do not dry the filters in direct sunlight or by using a heat source, such as an electric heater: this may warp them.

Caution: Do not wash the filters in hot water (above 50°C, 122°F), as this may warp them.

Caution: Make sure that the air filters are always installed. Operating the unit without air filters can cause malfunction.

Ensure the filters are completely dry before putting them back into the unit.

Sign off on the air filter cleaning
