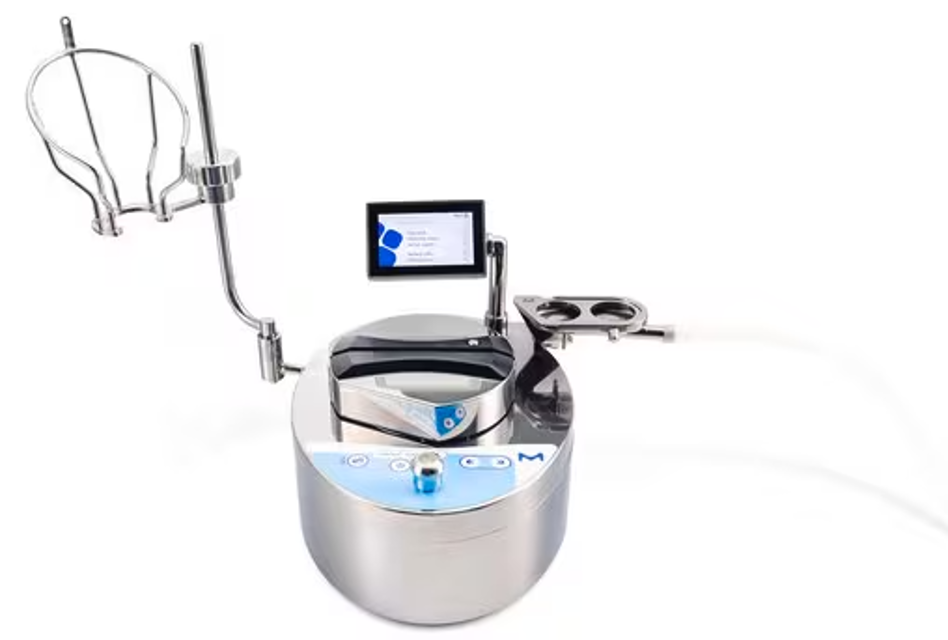

Merck KGaA Pump Symbio Pump ISL

Access the Configuration menu from the main screen.

Select Pressure Sensors Test from the Configuration menu.

Gather materials listed on the screen.

Place the two yellow plugs on the canister outlets and place the canisters on the drain tray.

Install the tubing in the pump head.

Avoid using solvents or abrasives that could damage the equipment’s surfaces.

Ensure no liquids come into direct contact with the internal parts of the pump or the equipment’s electrical components.

Do not turn the pump upside down.

Clean the pump and accessories after each use.

Autoclave the drain tray components and the drain tubing after each use.

Perform the pressure sensor verification every six months.

Enter the pressure reading in the canister

Did the pressure exceed 53 psi?

Did the pump need to be stopped manually again?

Manually stop the pump by pressing the control knob

Remove components from the canister

Disassemble the pump components

Switch off the communication hub and disconnect from power source

Clean the exterior surfaces of the pump with a nonwoven wipe moistened with a recommended cleaning agent

Clean the protective cover of the pump head with a nonwoven wipe moistened with a recommended cleaning agent

Autoclave the protective cover (optional)

Clean the exterior surfaces of the pump head rotor with a nonwoven wipe moistened with a recommended cleaning agent

Clean the inside of the pump head rotor with a soft brush dipped in a recommended cleaning agent

Ensure that the pump head is open

Press the button to shut down the equipment

Switch off the communication hub and disconnect it from the power source

Turn the drain tray to the removal position

Remove the drain tray from the pump

Disassemble the two parts of the drain tray

Remove the bottle holder basket from the bottle holder support rod
