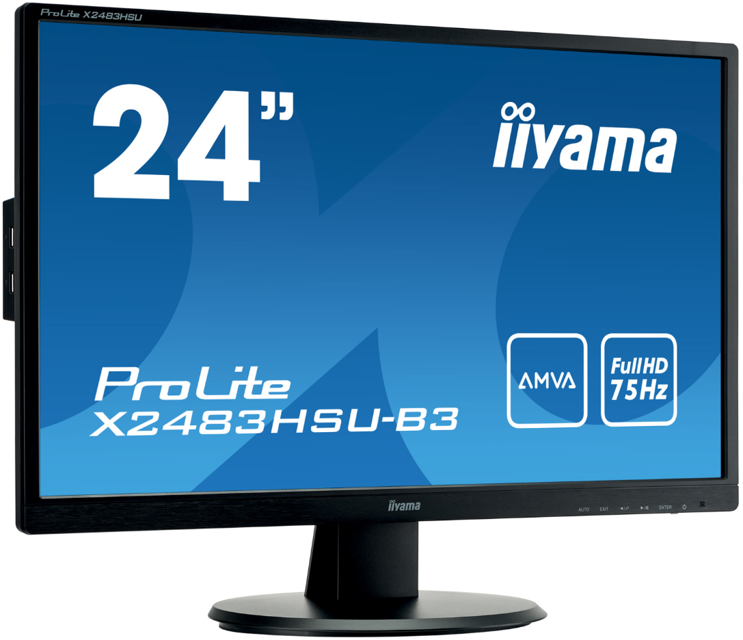

Mouse Computer Corporation LCD Monitor ProLite X2483HSU

Ensure the monitor has been on for at least 30 minutes for warm-up

Set the resolution to 1920 x 1080 for optimal performance

Display the picture at the optimum resolution

Set Test.bmp as wallpaper and center it in the wallpaper setting dialogue box

Press and hold the INPUT Button for 2-3 seconds to perform Auto Adjust

Ensure the monitor is on a stable surface

Hold the stand to prevent toppling during adjustment

Adjust the monitor's angle upward (maximum 22°)

Adjust the monitor's angle downward (maximum 5°)

Is the adjusted tilt angle within the recommended 10° for optimal viewing?

Avoid touching the LCD screen during adjustment

Check that all the parts are in place

Is the Power Cable rating appropriate for your power supply?

Contact your local iiyama dealer or regional iiyama office if any item is missing or damaged

Ensure the monitor is on a stable surface

Unplug the monitor to avoid electric shock or damage

Place a piece of soft cloth on the table to prevent scratches

Lay the monitor flat on the table with the front face down

Press the hooks inward to pull out the Stand-Base

Press the hook on the back of the monitor to remove the Stand-Neck
