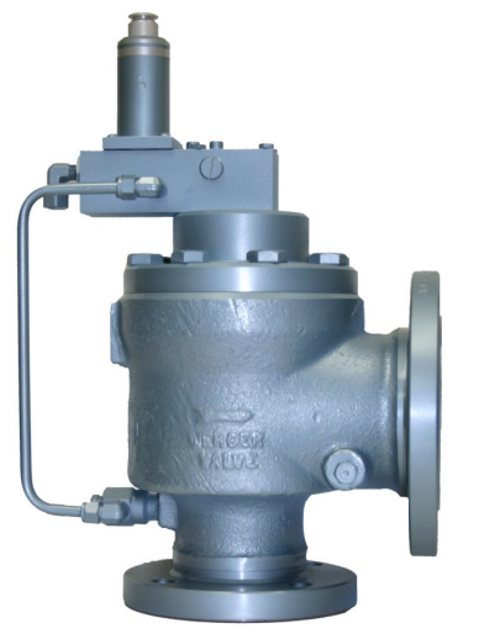

Mercer Valve Pressure Relief Valve 95-75Q14055

Warning: This procedure requires trained personnel!

Are two pressure gauges used for testing?

Are the gauges reading identical values within their respective tolerances?

If the gauges are not reading identical values, both should be checked for calibration.

Does the test gauge have at least 0.25% accuracy over their full scale?

Is the portion of the gauge used more stringent than the set pressure’s tolerance?

For analog gauges, is only the middle 1/3 or less of the gauge used?

Is each gauge calibrated using a dead weight tester?

Sign off on the monthly gauge calibration

Warning: This procedure requires trained personnel with PPE!

Upload a photo of the lift checking apparatus

Enter the measurement of the movement of the disk from the closed position to the fully open position

Enter the minimum lift for certified PRVs from the NB-18 publication

Does the lift meet the minimum requirement?

During the set pressure inspection, the set pressure is verified in accordance with the ASME Boiler and Pressure Vessel Code.

For all valves set 70 psi (500 kPa) and above, the set pressure has a tolerance of ±3% of the nameplate set pressure.

For all set pressure below 70 psi (500 kPa), the tolerance is ±2 psi (±15 kPa) of the nameplate set pressure.

If the valve has a CDTP associated with it due to temperature and/ or backpressure, the test pressure is checked to the CDTP.

Even with a CDTP, the set pressure tolerance is calculated based on the actual nameplate set pressure.

The set pressure test should be performed before (if it passes the visual inspection) and after any repairs.

The set pressure is inspected to the definition listed in NB-18, a publication by the National Board of Pressure Vessel Inspectors, which is found at http://www.nationalboard.org/.

This publication lists all ASME Boiler and Pressure Vessel Code certified pressure relief valves.

It indicates the correct set pressure definition and other characteristics of a valve.

- Pressure Relief Valve In Situ Testing

Testing and inspecting in place eliminates the laborious task of removing and handling the valve.

This is especially desirable with large PRVs.

Additionally, not disturbing the existing connections reduces the chance of compromising the existing seals.

This type of testing is very useful when a system cannot be shut down for long lengths of time.

There are disadvantages to this type of testing.

The inspection process is more difficult because the accessibility of the valve is reduced.

The outlet pipe is often still attached and the internal parts are not observable for the visual inspection.

This can also make it difficult to leak check.

For dependable performance, PRVs must be maintained regularly.

Mercer Valve recommends its PRVs are inspected and tested annually.

After the valve has been installed and a service history has been established, the testing and inspection frequency may be adjusted.

Some guidelines for testing frequencies can be found in NB-23, API 576, and API 598.

Additionally, government jurisdiction should be reviewed.

When maintenance is performed, only qualified repair personnel should complete it.

Qualified repair personnel conducting the annual inspection and testing may alter the maintenance schedule based on the service conditions.

Before performing maintenance, it should be ensured there is no pressure within the main valve or pilot valve.

All 6x8 and larger gas modulating pilots will have a check valve on the pilot inlet line to help with dome loading.
