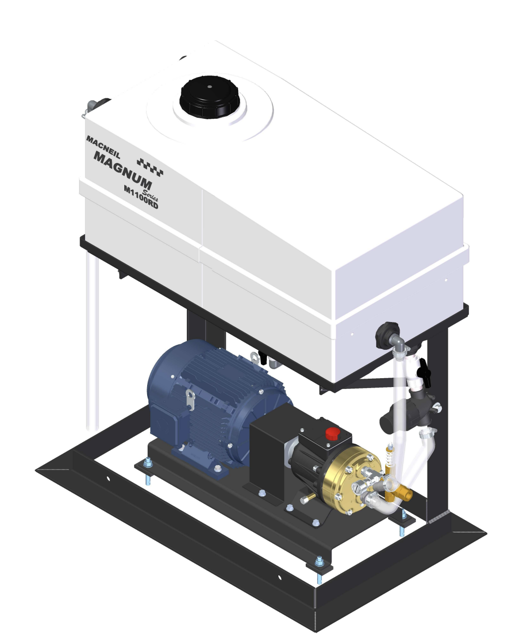

MacNeil Wash Systems Magnum Pump Station M1100RD
Create an account to install this asset package.
Maintenance Plans for MacNeil Wash Systems Magnum Pump Station Model M1100RD
Integrate maintenance plans directly into your work orders in MaintainX.
1 Weekly Maintenance
Check belts for visible signs of wear
Verify pump oil is dark green, not milky or black & is at correct level
Verify correct operating pressure
Check tank for sediment or debris
Listen for chatter or cavatation from pump
6 Monthly Replacement
Change pump oil
Initial 100 Hours Replacement
Change pump oil
1 Monthly Maintenance
Check belts for visible signs of wear
Verify pump oil is dark green, not milky or black & is at correct level
Verify correct operating pressure (800 psi)
Check tank for sediment or debris
Listen for chatter or cavatation from pump
Check pump oil level
Parts for MacNeil Wash Systems Magnum Pump Station M1100RD
Access the parts list for your equipment in MaintainX.
FTG HOSE ADAPTOR 1" PVC 1436010
16-033-03-PP
TOPAZ COMPACT NO EXTENSION ARMS 1.25 LONG TAIL
16-G21-13-02-PP
HHCS SS 3/8"-16 X 1"
82-506-016-SIC
Motor/Pumping Assembly
16-G11-12-10-MP
WSHR SS LOCK 3/8"
80-906-000-SI
FTG HOSE ADAPTOR 1" PVC 1436010
16-033-03-PP
TOPAZ COMPACT NO EXTENSION ARMS 1.25 LONG TAIL
16-G21-13-02-PP
HHCS SS 3/8"-16 X 1"
82-506-016-SIC
Motor/Pumping Assembly
16-G11-12-10-MP
WSHR SS LOCK 3/8"
80-906-000-SI
FTG HOSE ADAPTOR 1" PVC 1436010
16-033-03-PP
TOPAZ COMPACT NO EXTENSION ARMS 1.25 LONG TAIL
16-G21-13-02-PP
HHCS SS 3/8"-16 X 1"
82-506-016-SIC
Motor/Pumping Assembly
16-G11-12-10-MP
WSHR SS LOCK 3/8"
80-906-000-SI
