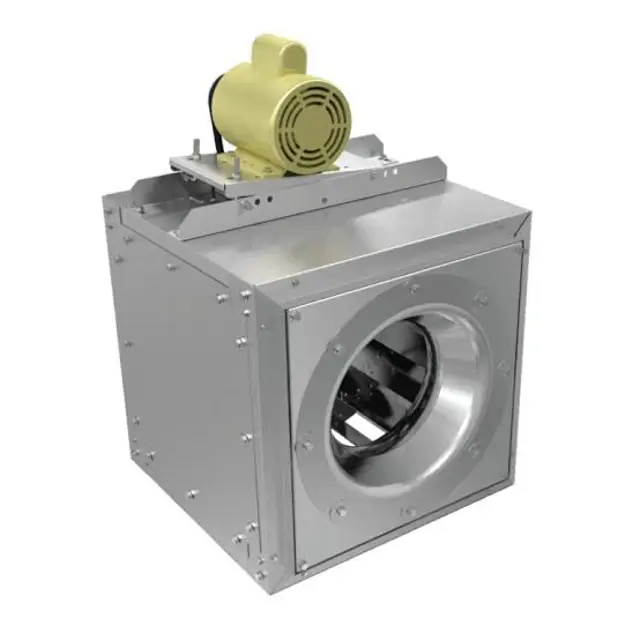

Loren Cook Company Ventilation Fan 150SQN-HP

Is the motor installed vertically?

Use polyurea mineral oil NGLI #2 grease for lubrication

Use compatible grease for lubrication

Complete lubrication of motor bearings

Verify wheel-to-inlet clearance before initial start-up

Enter the measured wheel-to-inlet overlap size (in inches)

Is the measured overlap within the maximum allowed for the selected size range?

Loosen the wheel hub and adjust the wheel along the shaft to correct overlap if necessary

Loosen inlet cone bolts and reposition the inlet cone to ensure uniform radial gap

Motor Bearings - NEMA Frame Size up to & including 184T

Verify relubrication intervals for NEMA Frame Size up to & including 184T

Is the motor installed vertically?

Confirm grease type for motor bearings

Motor Bearings - NEMA Frame Size 213T-365T

Verify relubrication intervals for NEMA Frame Size 213T-365T

Is the motor installed vertically?

Confirm grease type for motor bearings

Inspect bolts and setscrews for tightness

Inspect belt wear and alignment

Inspect bearings as recommended in the Conditions chart

Inspect bolts and setscrews for tightness

Inspect belt wear and alignment

Inspect bearings as recommended in the Conditions chart

Remove dust and grease on motor housing to assure proper motor cooling

Inspect fans exhausting corrosive or contaminated air within the first month of operation
