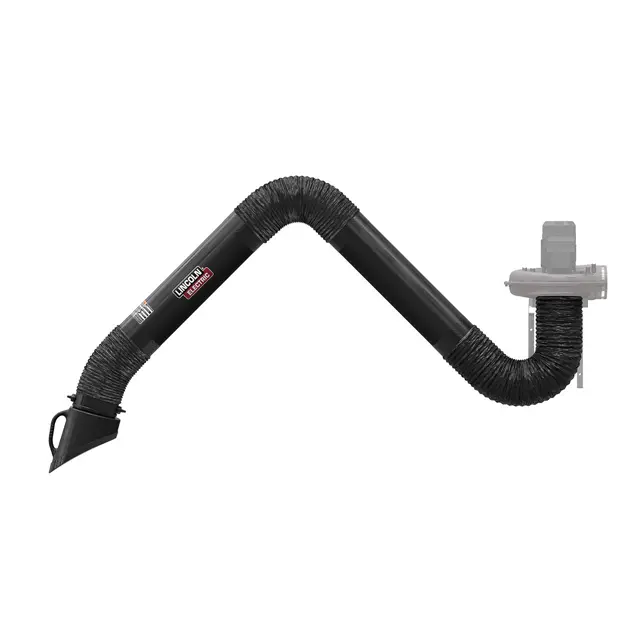

Lincoln Electric Extraction Arm LFA 3.1 (10FT) with Flange
Need answers fast?
Explore the manual using AI.
The Lincoln Electric Extraction Arm LFA 3.1 (10FT) with Flange is designed for efficient fume extraction in industrial environments. This robust arm enhances workplace safety by effectively removing harmful airborne contaminants, ensuring compliance with health standards. Ideal for welding and metalworking applications, it combines flexibility and durability for optimal performance.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Lincoln Electric Extraction Arm LFA 3.1 (10FT) with Flange
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lincoln Electric Extraction Arm LFA 3.1 (10FT) with Flange
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric Extraction Arm Model LFA 3.1 (10FT) with Flange
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Check
- Check The Balance Construction Of The Extraction Arm. Adjust Mechanism If Necessary
- Check Flexible Hoses For Cracks Or Damages. Replace If Necessary
- Check And Clean Inside Arm Thoroughly
- Check Horizontal, Vertical And Diagonal Arm Movement. If Necessary, Adjust The Spring And Friction
- Check 90O Rotation Of The Throttle Valve Using The Rotary Knob
- Check And Lubricate The Hinge Points With Bearing Grease;
3 Monthly Check
- Check And Clean Outisde Arm With A Non-Aggressive Detergent
- Check The Function Of The Hood Hinge. If Necessary, Adjust The Friction;
Parts for Lincoln Electric Extraction Arm LFA 3.1 (10FT) with Flange
Access the parts list for your equipment in MaintainX.
Decal Warning French
9SM22196-1
Arm Seal Band
9SFC0840101030
Lfa 3.1 10Ft Supp. Struct. Assem.
9SS31226-310
Duct Flexible
9SS31256-5
Plain Washer
9SS9262-121
Decal Warning French
9SM22196-1
Arm Seal Band
9SFC0840101030
Lfa 3.1 10Ft Supp. Struct. Assem.
9SS31226-310
Duct Flexible
9SS31256-5
Plain Washer
9SS9262-121
Decal Warning French
9SM22196-1
Arm Seal Band
9SFC0840101030
Lfa 3.1 10Ft Supp. Struct. Assem.
9SS31226-310
Duct Flexible
9SS31256-5
Plain Washer
9SS9262-121
