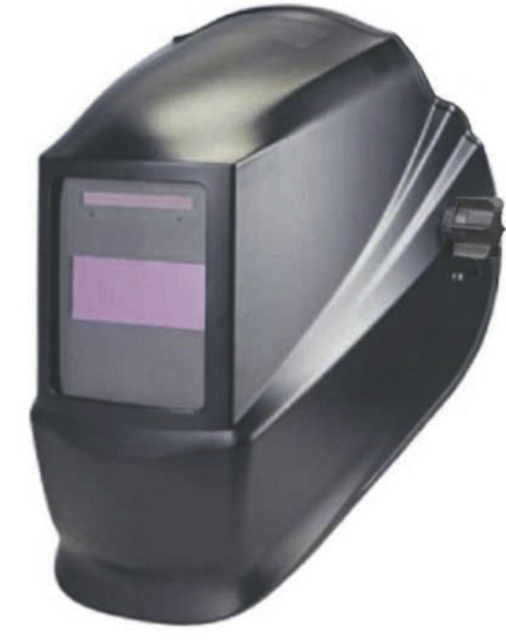

Lincoln Electric Autodarkening Helmet Shade 11
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric Autodarkening Helmet Model Shade 11
Integrate maintenance plans directly into your work orders in MaintainX.
Cover Lens Replacement
Replace the front cover lens if it is damaged. Remove ADF holder assembly. Remove front cover lens from helmet assembly. Carefully remove gasket from cover lens. Install new cover lens into gasket and assemble to helmet shell. Make sure to assemble cover lens and gasket to helmet shell in the same way as it was removed.
Helmet Cleaning
Clean the helmet by wiping with a soft cloth. Clean cartridge surfaces regularly. Do not use strong cleaning solutions. Clean sensors and solar cells with soapy water solution and a clean cloth and wipe dry with a lint-free cloth. Do NOT submerge shade cartridge in water or other solution.
Shade Cartridge Replacement
Remove ADF holder assembly from helmet shell. Flex one end of the ADF holder to allow for Adapter and ADF cartridge to be removed from frame. Install new ADF cartridge into frame. Make sure that the ADF cartridge is inserted in ADF holder correctly as shown. Install Adapter into the ADF holder in the same way as it was removed. Install ADF holder into helmet shell.
Parts for Lincoln Electric Autodarkening Helmet Shade 11
Access the parts list for your equipment in MaintainX.
HEADGEAR ASSEMBLY
-
OUTSIDE CLEAR COVER LENS
-
OUTSIDE CLEAR COVER LENS SEAL
-
ADF HOLDER
-
SHELL
-
HEADGEAR ASSEMBLY
-
OUTSIDE CLEAR COVER LENS
-
OUTSIDE CLEAR COVER LENS SEAL
-
ADF HOLDER
-
SHELL
-
HEADGEAR ASSEMBLY
-
OUTSIDE CLEAR COVER LENS
-
OUTSIDE CLEAR COVER LENS SEAL
-
ADF HOLDER
-
SHELL
-
