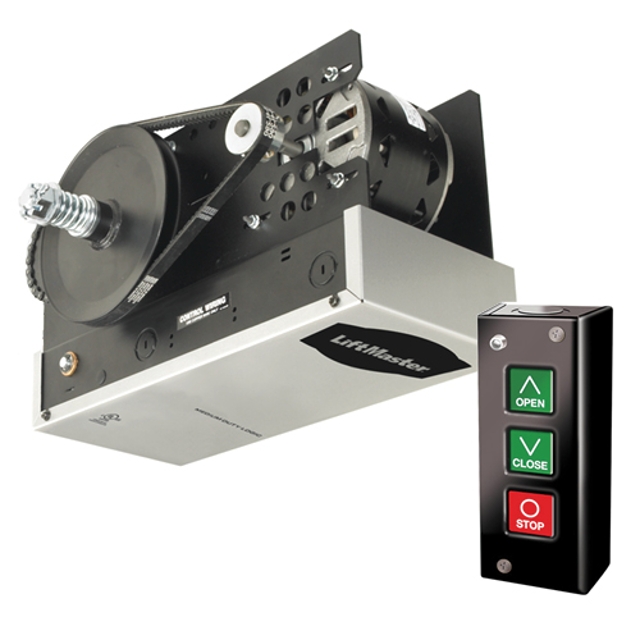

Liftmaster Medium Duty Commercial Door Operator MT5011U

WARNING! To avoid SERIOUS personal INJURY or DEATH Disconnect electric power BEFORE performing ANY adjustments or maintenance. ALL maintenance MUST be performed by a trained door systems technician

IMPORTANT NOTES: Do not leave power to the operator on unless all entrapment protection devices have been tested and are working properly. Be sure you have read and understand all safety instructions included in this manual. Be sure the owner or person(s) responsible for operation of the door have read and understand the safety instructions, know how to electrically operate the door in a safe manner and how to manually disconnect the door from the operator.

Press OPEN button. (The door should open.)

Press CLOSE button. (The door should close.)

If the limits are not set properly, remove power and adjust limits (refer to installation manual)

Sign off on the limit adjustment testing

WARNING! To avoid SERIOUS personal INJURY or DEATH Disconnect electric power BEFORE performing ANY adjustments or maintenance. ALL maintenance MUST be performed by a trained door systems technician

IMPORTANT NOTES: Do not leave power to the operator on unless all entrapment protection devices have been tested and are working properly. Be sure you have read and understand all safety instructions included in this manual. Be sure the owner or person(s) responsible for operation of the door have read and understand the safety instructions, know how to electrically operate the door in a safe manner and how to manually disconnect the door from the operator.

Press remote control button, door should open. Allow the door to fully open.

Press remote control button, door should close. Allow door to fully close.

Sign off on the remote control testing

WARNING! To avoid SERIOUS personal INJURY or DEATH Disconnect electric power BEFORE performing ANY adjustments or maintenance. ALL maintenance MUST be performed by a trained door systems technician

IMPORTANT NOTES: Do not leave power to the operator on unless all entrapment protection devices have been tested and are working properly. Be sure you have read and understand all safety instructions included in this manual. Be sure the owner or person(s) responsible for operation of the door have read and understand the safety instructions, know how to electrically operate the door in a safe manner and how to manually disconnect the door from the operator.

Place an obstruction in the path of the photoelectric sensors or sensing edge

Press the CLOSE button. The door should not close if photoelectric sensors are installed. The door should close to obstruction and reverse if sensing edge is installed

Press CLOSE button. Door should close

If door did not reverse from obstruction, check entrapment protection devices

Sign off on the entrapment protection devices testing

WARNING! To avoid SERIOUS personal INJURY or DEATH Disconnect electric power BEFORE performing ANY adjustments or maintenance. ALL maintenance MUST be performed by a trained door systems technician

IMPORTANT NOTES: Do not leave power to the operator on unless all entrapment protection devices have been tested and are working properly. Be sure you have read and understand all safety instructions included in this manual. Be sure the owner or person(s) responsible for operation of the door have read and understand the safety instructions, know how to electrically operate the door in a safe manner and how to manually disconnect the door from the operator.

Press OPEN button. (The door should move in the open direction.)

Press STOP button. (The door should stop.)

Press CLOSE button. (The door should move in the close direction.)

Release CLOSE button. Door should stop if in C2 mode. (The door should continue closing if in B2 mode.)

Press STOP button. (The door should stop.)

Sign off on the 3 Button Control Station Testing
