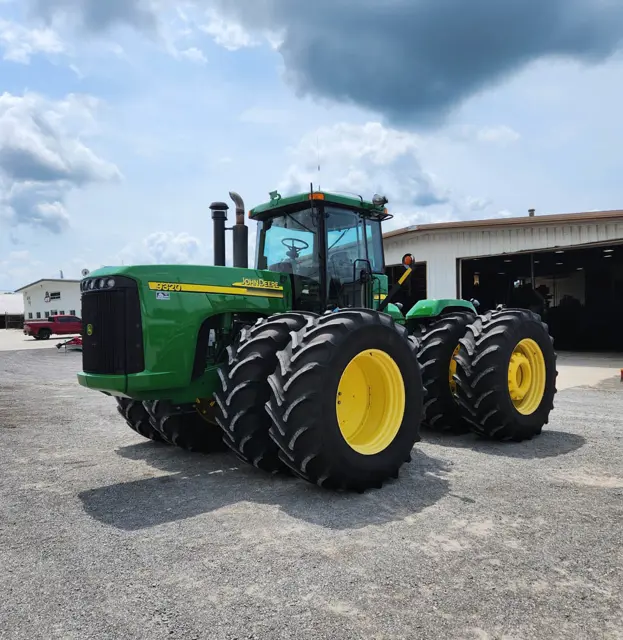

The John Deere Tractor 9320 is a powerful and versatile agricultural machine designed for heavy-duty tasks. Known for its reliability and efficiency, this tractor model excels in various farming applications, making it an essential asset for modern agricultural operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 9320

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 9320

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 9320

Integrate maintenance plans directly into your work orders in MaintainX.

1500 Hourly Maintenance

Change Transmission/Axle, and Hydraulic Oil —24-Speed POWRSYNC Transmission

Steps

Change Transmission/Axle, and Hydraulic Oil —18-Speed Powershift Transmission

Steps

Clean Transmission Sump Screen

Inspect Alternator and Fan Belt Tensioners

Steps

Check Axle End Play

Check Axle End Play (Normal Use) (2000 Hourly Maintenance)

Run this procedure

10 Hourly / Daily Maintenance

Check Engine Oil Level

Check Coolant Level

Drain Water Separator

Check Transmission Oil Level

Check Hydraulic Oil Level

Check Axle Oil Levels

Park tractor on level ground

Operate engine at 2100 rpm, with transmission in PARK position, for at least 5 minutes (or longer with cold oil) to fill axles and return oil from the axles to the transmission

Stop engine and allow the oil level to stabilize in the sight gauge for at least 5 minutes

Run this procedure

Yearly Maintenance

Primary Engine Air Filter replaced

Secondary Engine Air Filter replaced

Cab Air Filter replaced

Recirculation Filters replaced

Hitch Sensor lubricated

Seat Belts inspected

Motor Seal Drain Filter replaced (if equipped)

Sign off on the yearly maintenance

Run this procedure

250 Hourly Maintenance

Change Engine Oil and Filter

Replace Fuel Filter (9220, 9320, 9420, 9520, 9620)

Check Manual Brakes

Pump brake pedal. Pedal (A) should have a solid feel. If the pedal does not feel solid, bleeding the brakes may be necessary.

Be sure the pedal does not settle to the end of stroke within 10 seconds after being applied. If leakage exceeds this rate, see your John Deere Dealer.

Service Batteries

Check Neutral Start System

Check PARK System

Clean Cab Air and Recirculation Filters

Run this procedure

750 Hourly Maintenance

Hydraulic Filter replaced

Reservoir Screen cleaned

Reservoir Breather Filter replaced

Transmission/Axle Filter replaced

Coolant tested and Coolant Conditioner added

Water Separator cleaned
