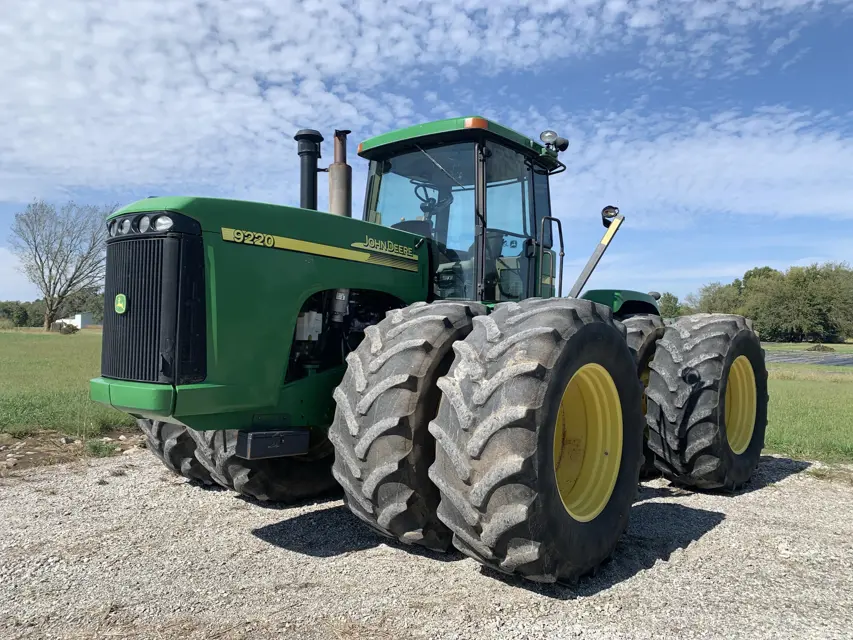

John Deere Tractor 9220

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 9220

Integrate maintenance plans directly into your work orders in MaintainX.

1500 Hourly Maintenance

Change Transmission/Axle, and Hydraulic Oil —24-Speed POWRSYNC Transmission

Steps

Change Transmission/Axle, and Hydraulic Oil —18-Speed Powershift Transmission

Steps

Clean Transmission Sump Screen

Inspect Alternator and Fan Belt Tensioners

Steps

Check Axle End Play

Check Axle End Play (Normal Use) (2000 Hourly Maintenance)

Run this procedure

250 Hourly Maintenance

Change Engine Oil and Filter

Replace Fuel Filter (9220, 9320, 9420, 9520, 9620)

Check Manual Brakes

Pump brake pedal. Pedal (A) should have a solid feel. If the pedal does not feel solid, bleeding the brakes may be necessary. See your John Deere Dealer.

Be sure the pedal does not settle to the end of stroke within 10 seconds after being applied. If leakage exceeds this rate, see your John Deere Dealer.

Service Batteries

Check Neutral Start System

Check PARK System

Clean Cab Air and Recirculation Filters

Run this procedure

10 Hourly / Daily Maintenance

Check Engine Oil Level

Check Coolant Level

Drain Water Separator

Check Transmission Oil Level

Check Hydraulic Oil Level

Check Axle Oil Levels

Park tractor on level ground.

Operate engine at 2100 rpm, with transmission in PARK position, for at least 5 minutes (or longer with cold oil) to fill axles and return oil from the axles to the transmission.

Stop engine and allow the oil level to stabilize in the sight gauge for at least 5 minutes. Recheck oil level and refill at fill tube (A) as necessary.

Run this procedure

2 Yearly Maintenance

Drain, Flush, and Refill Engine Cooling System

Relieved pressure and removed surge cap

Removed bottom access panel and opened radiator drain fitting and engine block drain cock

Removed thermostat cover and thermostats, installed cover without thermostats

Closed drain cocks and filled system with a commercial cooling system cleaning solution

Operated engine to operating temperature, stopped engine and drained system

Closed drain cocks and filled system with clean water, operated engine to operating temperature, stopped engine and drained system

Removed thermostat cover and cleaned all sealing material from thermostat cover and housing mounting surfaces

Applied sealant to new gasket and installed thermostats and gasket

Run this procedure
