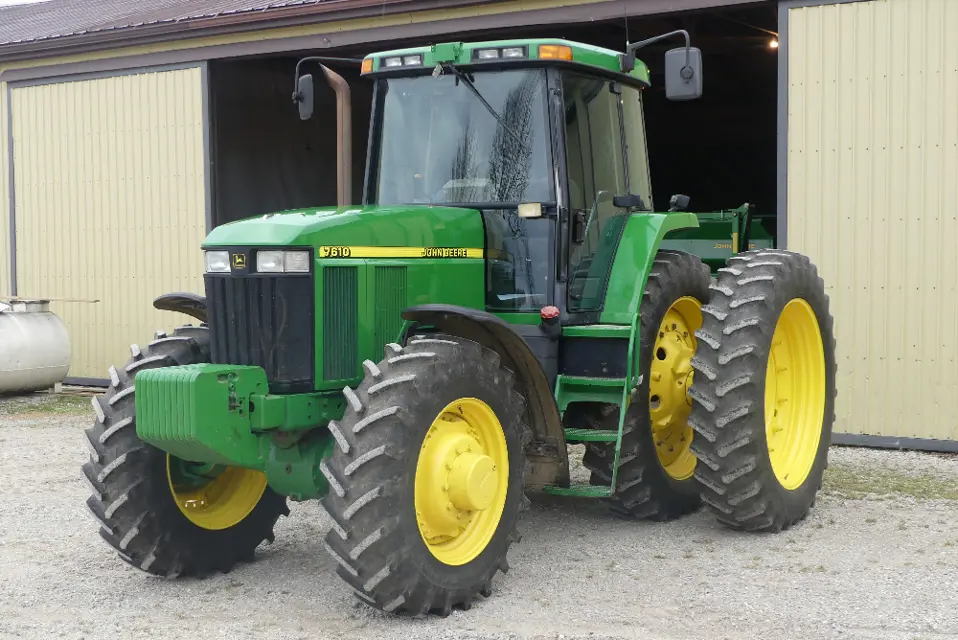

The John Deere Tractor 7610 is a robust agricultural asset designed for efficiency and durability. This versatile tractor excels in various farming applications, ensuring optimal performance and reliability for operators. With its powerful engine and advanced features, the 7610 is a preferred choice for modern agricultural needs.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 7610

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 7610

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 7610

Integrate maintenance plans directly into your work orders in MaintainX.

2 Yearly Maintenance

Drain, Flush, and Refill Engine Cooling System

Relieve pressure and remove radiator cap

Open radiator and engine drain cocks

Remove thermostat cover and thermostats, install cover without thermostats

Close drain cocks, fill system with a cooling system cleaning solution

Operate engine up to normal temperature, stop engine and drain system

Repeat step 4 using clean water

Remove thermostat cover, clean sealing area, apply sealant to new gasket and install thermostats

Close drain cocks again, fill system with the specified coolant, operate engine to circulate and mix coolant

Run this procedure

1500 Hourly Maintenance

Change Transmission-Hydraulic Oil

Clean Hydraulic Oil Suction Screen

Change MFWD Hub Oil

Change MFWD Axle Housing Oil

Steps to change MFWD Axle Housing Oil

Lubricate Draft Link Support Shaft Bushing

Change Front PTO Housing Oil

Check Belt Tensioner

Steps to check Belt Tensioner

Run this procedure

250 Hourly Maintenance

Change Engine Oil and Filter

Service Batteries

Drain Fuel Tank Sump

Inspect Tractor for Loose Bolts

Check Neutral Start System

Check Manual Brakes

With engine stopped, check manual brakes for correct function:

Pump individually the left brake (A) and right brake (B). The pedals should have a solid feel. If pedals do not feel solid, bleed the brakes or see your John Deere Dealer.

Check to make sure the pedals do not settle to the end of stroke within 10 seconds after being applied. If leakage exceeds this rate or if one pedal settles faster than the other, see your John Deere Dealer.

Run this procedure

10 Hourly / Daily Maintenance

Check Engine Oil Level

Check Coolant Level

Drain Water Separator

Check Transmission-Hydraulic Oil Level

Lubricate Rockshaft and Hitch Components

Inspect Tires

Run this procedure

Yearly Maintenance

Primary Engine Air Filter replaced?

Secondary Engine Air Filter replaced?
