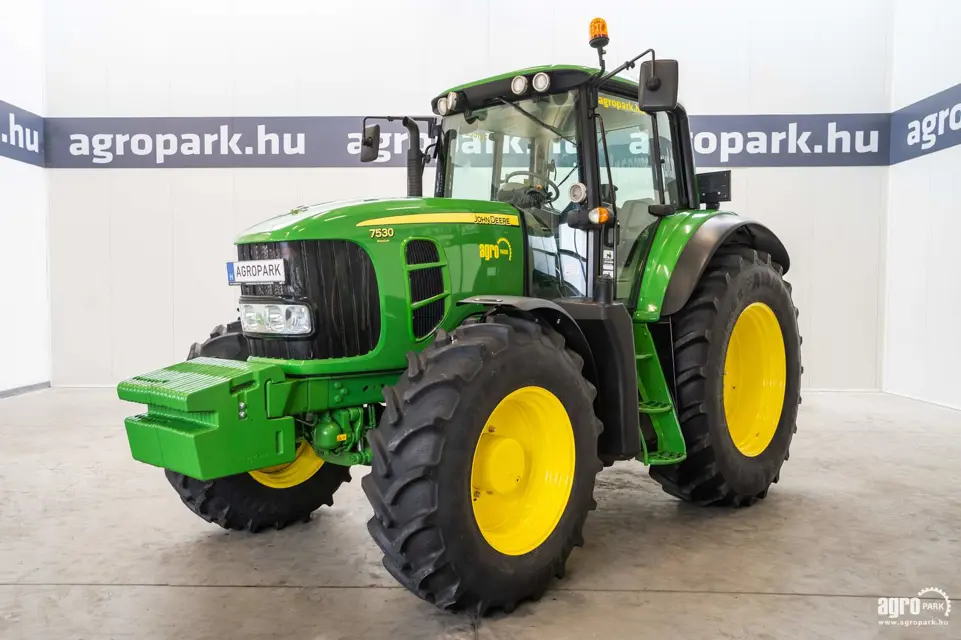

The John Deere Tractor 7530 is a robust agricultural machine designed for high performance and efficiency. With its powerful engine and advanced features, this tractor is ideal for various farming tasks, ensuring reliability and productivity in the field.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 7530

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 7530

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 7530

Integrate maintenance plans directly into your work orders in MaintainX.

250 Hourly Maintenance

Drain residue from fuel tank

Check oil level of transmission/hydraulic system

Park tractor so that it is level.

Apply park brake or engage park lock.

Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

7130 and 7230 tractors: Oil level should be between marks (A) on the sight-glass. If it is not, add more oil at filler neck (B).

7330 to 7530 tractors: Oil level should be between the marks on sight-glass (A). If it is not, add more oil at filler neck (B).

Check the level of the electrolyte in the battery

Lubricate front axle (tractors without front-wheel drive)

Run this procedure

750 Hourly Maintenance

Unscrew filter elements

Coat sealing rings of new filter elements with grease

Screw in filter elements

Use original John Deere filter elements only!

Change front PTO filter

Run this procedure

1000 Hourly Maintenance

Accumulator of cab suspension checked by John Deere dealer

Viscous fan drive checked by John Deere dealer

Valve clearance checked by John Deere dealer

Glow plugs checked by John Deere dealer

Sign off on the 1000 hourly maintenance

Run this procedure

100 Hourly Maintenance

Drain engine crankcase and refill with fresh oil

Replace engine oil filter

Tighten screws on front loader bracket

Check air intake hoses

Replace transmission/hydraulic oil filter

Drain the axle housing and final drives, and refill with fresh oil

Lubricate front PTO drive shaft

Retighten cab attaching screws. Torques: front screws 280 N-m (205 Ib-ft), rear screws 200 N-m (150 lb-ft)

Sign off on the 100 Hourly Maintenance

Run this procedure

Yearly Maintenance

Inspect seat belt

Drain engine crankcase and refill with fresh oil

Check engine drive belt for wear

Lubricate front PTO drive shaft

Replace cab air filters

Use coolant test strip to test coolant (see annual service)

Test the Coolant

John Deere COOL-GARD™ II Premix and COOL-GARD II Concentrate are maintenance-free coolants for up to 6 years or 6000 hours of operation, provided that the cooling system is topped off using only John Deere COOL-GARD II Premix coolant. Test the coolant condition annually with coolant test strips designed for use with John Deere COOLGARD II coolants. If the test strip chart indicates that additive is required, add John Deere COOL-GARD II EXTENDER as directed.

Open the hood

Run this procedure
