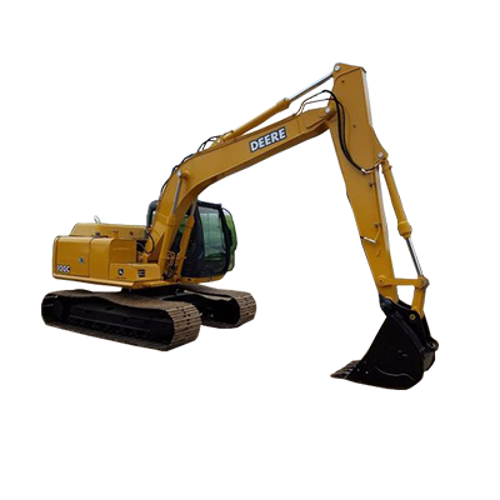

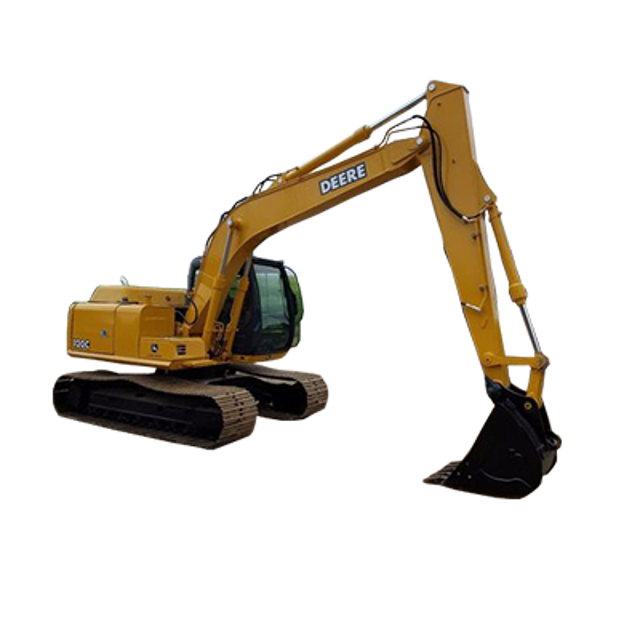

John Deere Loader 120C
Need answers fast?
Explore the manual using AI.
The John Deere Loader 120C is a robust industrial asset designed for heavy-duty applications. Known for its reliability and efficiency, this loader excels in various construction and agricultural tasks, making it an essential tool for professionals seeking high performance and durability.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for John Deere Loader 120C
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
John Deere Loader 120C
Create an account to install this asset package.
Maintenance Plans for John Deere Loader Model 120C
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hourly Maintenance
Check swing gear case oil level
Drain hydraulic oil tank sump
Check radiator coolant level
Take engine oil sample
Clean air cleaner elements
Check battery water level: tighten terminals
Check travel gear case oil level
Check and adjust air conditioning belt
After initial 250 hours
2000 Hourly Maintenance
Travel gear case oil changed
Radiator drained and flushed, coolant changed
Engine valve lash checked and adjusted
Hydraulic oil change and suction screen cleaning
1000 Hourly Maintenance
Change swing gear case oil
Replace hydraulic oil tank filter
Replace pilot control oil filter
Clean engine crankcase vent tube
Check fan belt
Replace air cleaner elements and dust unloader valve
Sign off on the 1000 Hourly Maintenance
10 Hourly / Daily Maintenance
Check hydraulic tank oil level
Check coolant level at recovery tank
Check engine oil level
Grease hydraulic coupler if equipped
Grease working tool pivots in every 100 hours.
Sign off on the daily maintenance
Maintenance as required
Check and adjust track sag
Clean fuel tank inlet screen
Drain fuel tank sump
Drain water separator
Clean air cleaner unloader valve
Check windshield washer fluid
Check radiator air inlet screen
Sign off on the maintenance
Parts for John Deere Loader 120C
Access the parts list for your equipment in MaintainX.
Pilot Control Oil Filter 160CLC
AT214263
Fuel Filter Element
RE509031
Air Filter Secondary
AT175345
Dust Cup/Unloader Valve
T158495
Engine Rocker Arm Cover Gasket
R123542
Pilot Control Oil Filter 160CLC
AT214263
Fuel Filter Element
RE509031
Air Filter Secondary
AT175345
Dust Cup/Unloader Valve
T158495
Engine Rocker Arm Cover Gasket
R123542
Pilot Control Oil Filter 160CLC
AT214263
Fuel Filter Element
RE509031
Air Filter Secondary
AT175345
Dust Cup/Unloader Valve
T158495
Engine Rocker Arm Cover Gasket
R123542
