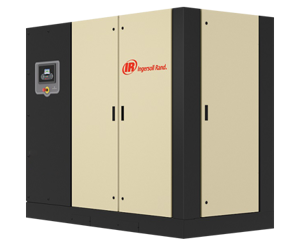

Ingersoll Rand Air Compressor R110IU-125

Warning: Do not operate unit past the 1000 hour change interval, as coolant degradation will occur.

Enter the current operating hours of the unit

Enter the date of the last coolant change

Is the unit within the change interval?

If the unit is not within the change interval, stop operation immediately and replace the coolant.

Upload a photo of the new coolant bottle

Sign off on the coolant replacement

Is the coolant level visible in the sight glass while the machine is running on load?

Is the coolant level between the middle and the top of the green section of the sight glass tube?

Did you run the compressor for a minimum of 40 seconds before stopping?

Did you add coolant until the level is up to the mid-point of the sight glass?

Did you perform a visual check of the machine for any leaks, dust build up or unusual noise/vibration?

Sign off on the daily coolant level check

Check the cooler(s) for build up of foreign matter

Cleaned the cooler(s) if necessary?

On water cooled and sea water cooled models, check the water input line strainer for build up of foreign matter

Cleaned the water input line strainer if necessary?

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid

Take coolant sample for fluid analysis

Check scavenge screen for blockage, clean if required

Check the calibration of the pressure transducer
