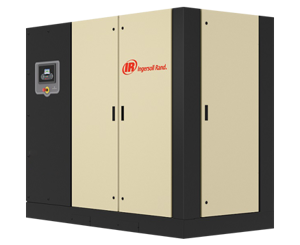

Ingersoll Rand Air Compressor R110IU-140

SSR Food Grade Coolant is a polalphaolefin base coolant.

Change every 1000 hours or every 6 months, whichever comes first.

Do not operate unit past this 1000 hour change interval, as coolant degradation will occur.

Enter the current operating hours of the unit

Enter the date of the last coolant change

Was the coolant replaced within the specified interval?

Upload a photo of the new coolant bottle

Sign off on the coolant replacement

Is the coolant visible in the sight glass while the machine is running on load?

Is the coolant level between the middle and the top of the green section of the sight glass?

Did you run the compressor for a minimum of 40 seconds before stopping?

Did you add coolant until the level is up to the mid-point of the sight glass?

Any leaks, dust build up or unusual noise/vibration?

If any issues were found, describe them here

Check the cooler(s) for build up of foreign matter

Cleaned the cooler(s) if necessary?

On water cooled and sea water cooled models, check the water input line strainer for build up of foreign matter

Cleaned the water input line strainer if necessary?

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid

Take coolant sample for fluid analysis

Check scavenge screen for blockage, clean if required

Check the calibration of the pressure transducer
