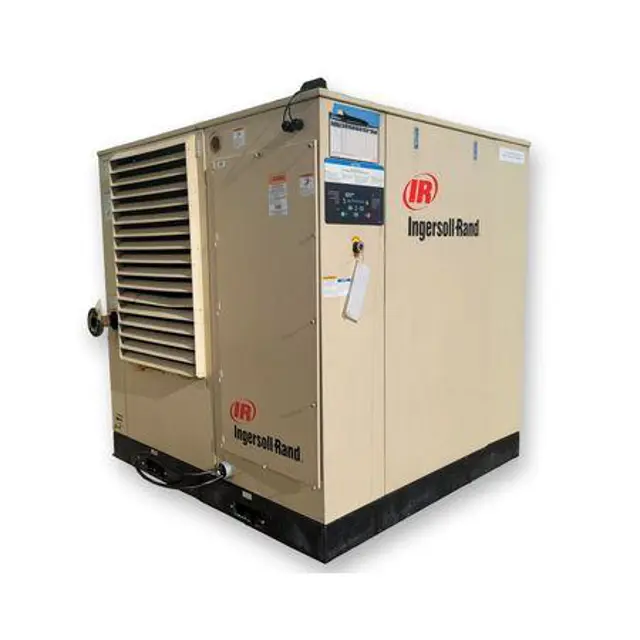

Ingersoll Rand Air Compressor SSR-XF100

Induction-type squirrel cage motor lubrication

The motor has anti-friction ball or roller bearings front and rear. At extended intervals they require relubrication.

The periods between re-greasings of the motor bearings can vary, primarily with the security of the service conditions under which the motor operates.

For severe duty - Dusty locations - High Ambients, reduce time intervals in table above to 1/3 the listed value.

Enter the hours of operation since last lubrication

Was the lubrication successful?

Sign off on the motor lubrication

284T THROUGH 449TDZ FRAME DRIVE MOTORS

Rotate the drive motor several revolutions by hand in the proper direction of rotation

Rotate the motor at three month intervals until the unit is placed in service

Has the storage time exceeded a total of six (6) months duration?

If yes, re-grease the motor using the amount and type of grease described in the Operator's Manual

Upload a photo of the re-greased motor

After re-greasing, continue to rotate the motor at three (3) month intervals

Date of next rotation after re-greasing

Warning: This check requires trained personnel with PPE!

Condensate trap is not fouled or defective

If condensate trap is fouled or defective, report the issue to the maintenance team and stop the procedure

Condensate flow observed when aftercooler lowers the discharge air temperature below the dew point

Under atmospheric conditions of very low humidity, no water vapor is condensed and no flow from the condensate trap observed?

Visual inspection of the open funnel in the drain line successful

Sign off on the water carryover to discharge lines check

Warning: Care should be exercised during these lamp checks because of the electrical hazards that will be present when the electrical box is open.

Power On (1LT) lamp lights up when power is applied to the transformer

Coolant Filter Lamp (3LT) lights up when power is applied to (3B-12)

Air Filter Warning Lamp (4LT) lights up when power is applied to (3B-13)

Automatic Restart Lamp (14LT) lights up when power is applied to (3B-8)

Warning: No drainage points should be opened until the compressor has been isolated electrically and all air pressure has been removed from the system.

Is the compressor isolated electrically and all air pressure removed from the system?

Warning: Extreme care should be exercised when draining the hot lubricant so that no possibility of injury to personnel exists.

Has the lubricant been drained soon after the compressor has been shut down?

Has a new filter element been installed?

Select the capacity of the compressor

Enter the receiver level of lubricant

Is the receiver level of lubricant up to the mid-point of the gauge glass?

Has the compressor been started and run for a short while?
