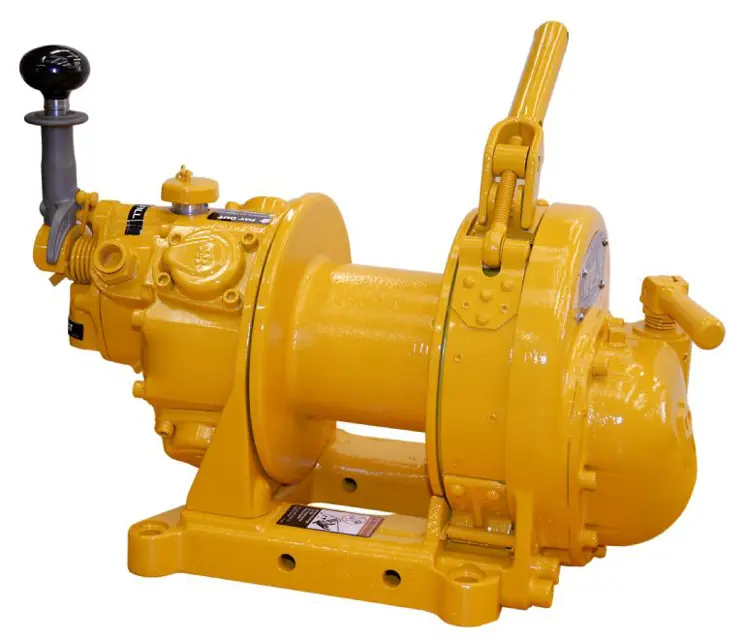

Ingersoll Rand Air Winch EUL

If product is disassembled, clean all parts thoroughly and coat bearings and seals with clean grease. Refer to ‘Recommended Lubricants’ section on page 7. Use sufficient grease to provide a good protective coat. Lubricate grease fittings monthly with 2 or 3 pumps of a grease gun;

The air line lubricator should be replenished daily and set to provide 6 to 9 drops per minute of ISO VG 32 (SAE 10W) oil. A fine mist will be exhausted from control valve when air line lubricator is functioning properly

Visually inspect for damage, air leaks and loose connections

Repair all leaks or damage and tighten loose connections prior to starting daily tasks

Visually inspect all wire rope expected to be in use during the day’s operations. Inspect for wear and damage indicated by distortion of wire rope such as kinking, “birdcaging,” core protrusion, main strand displacement, corrosion, broken or cut strands. If damage is evident, do not operate winch until the discrepancies have been reviewed and inspected further by personnel knowledgeable on wire rope safety and maintenance procedures

Check grease in gear chamber weekly by removing lower grease plug in gear case cover. If grease is below this opening, remove grease plug from top of gear case cover and add a sufficient quantity to bring grease level in chamber up to the side opening

Brush, drip or spray lubricant weekly, or more frequently, depending on severity of service;

It is recommend that the first oil change be done after approximately 50 hours of initial operation;
