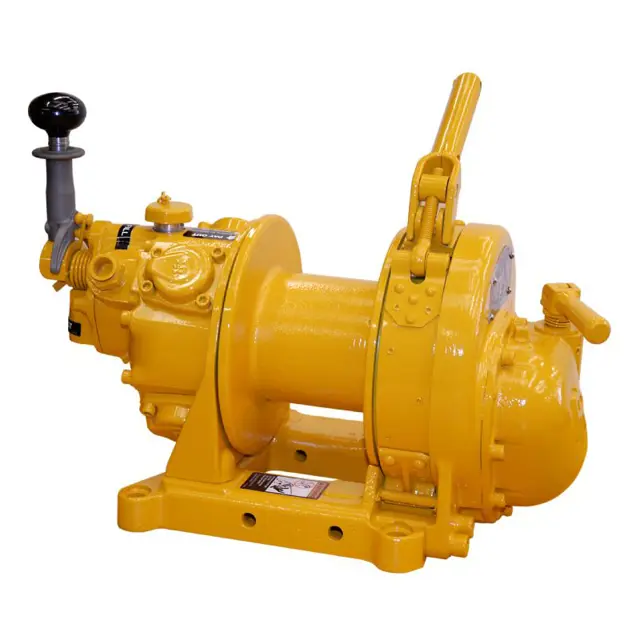

Ingersoll Rand Air Winch BU7A

Standby equipment shall be inspected at least semi-annually in accordance with the requirements of ‘Frequent Inspection’ on page 7;

If product is disassembled, clean all parts thoroughly and coat bearings and seals with clean grease. Refer to ‘Recommended Lubricants’ section on page 7. Use sufficient grease to provide a good protective coat. Lubricate grease fittings monthly with 2 or 3 pumps of a grease gun;

Check grease in gear chamber weekly by removing lower grease plug in gear case cover. If grease is below this opening, remove grease plug from top of gear case cover and add a sufficient quantity to bring grease level in chamber up to the side opening

Brush, drip or spray lubricant weekly, or more frequently, depending on severity of service;

It is recommend that the first oil change be done after approximately 50 hours of initial operation;
