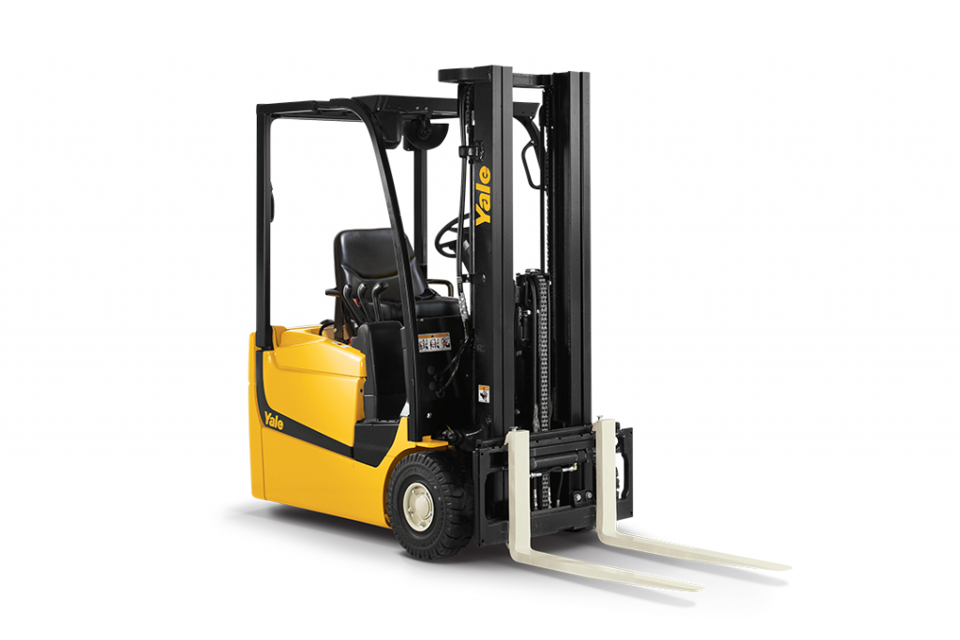

Hyster-Yale Lift Truck ERP030VTN48TE082

Drive tire removed and forklift frame blocked

Key switch turned to OFF position and battery disconnected

Wheels blocked to prevent unexpected movement

Drip pan with at least a 3.0 liter (3.3 qt) capacity placed under transaxle

Breather inspected for proper operation

Drain plug removed and cleaned thoroughly

Drain plug installed into transaxle and tightened to 22 Nem

Transaxle removed from lift truck

Parking brake and traction motor removed from transaxle

Snap ring in brake cylinder removed

Pressurized air directed into service brake line port in cover to force cap out of cylinder

Spring recovered from beneath cap

Seal removed from the cap and cut in two to prevent accidental reuse

Sign off on the transaxle brake cylinder repair

Warning: This procedure requires trained personnel with PPE!

Drive tire removed and lift truck frame blocked?

Damaged stud removed using adjustable grip pliers?

Thread tap (size M14 x 1.5) run into stud hole to clean and repair any damaged threads?

Threads tested with a thread plug gauge (size M14 x1.5 - 6H)?

If threads are within specification, new stud installed using Stud Installation Tool?

Tighten studs to 80 Nem (59 Ibf ft)

Drive tire reinstalled and lugs tightened to 170Nm?

Drive tire removed and lift truck frame blocked

Amount of fluid added (if necessary)

Check plug (and fill plug if removed) replaced and tightened

Drive tire reinstalled and lugs tightened

Procedure repeated for other transaxle

Hours since last fluid level check

Warning: This procedure requires trained personnel with PPE!

Drive tire removed and lift truck frame blocked?

Breather cap removed with a flat screwdriver?

Breather ball forced out with compressed air?

6mm thread tap installed into breather using a tap wrench?

New breather positioned into housing by hand?

Breather driven into housing using Breather Set Tool and a nylon faced hammer?

Drive tire reinstalled and lugs tightened to 170 Nm?
