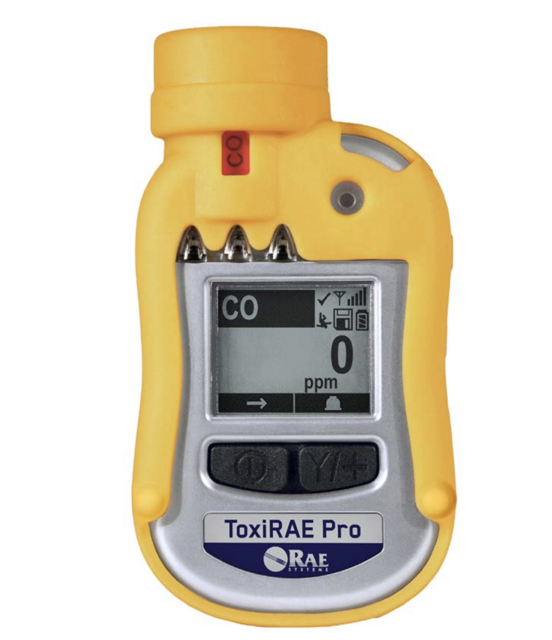

Honeywell Wireless Personal Monitor for Toxic Gases and Oxygen ToxiRAE Pro PGM-1860

Warning: Handle the ToxiRAE Pro with care during this procedure.

Tab on the belt clip flipped up

Bottom corners of the boot stretched and slid over the rear of the ToxiRAE Pro

Boot slid up and off the instrument without forcing

Rubber boot inspected for damage

If the rubber boot is damaged, replace it.

New boot slid onto the instrument

Warning: Handle the sensor module with care.

Lift out the sensor module gently

Ensure the sensor is correctly positioned

Place the sensor module into the ToxiRAE Pro

Ensure the cap is securely screwed back on

Note: Always calibrate the ToxiRAE Pro after replacing the sensor module.

Sign off on the sensor replacement

Warning: To reduce the risk of ignition of hazardous atmospheres, replace the battery only in areas known to be non-hazardous.

Unit turned off before changing the battery

Rubber boot removed from the ToxiRAE Pro

Sensor module removed without using tools

Four screws on the back of the instrument removed

Rear cover separated from the front without disconnecting the ribbon cable

Battery disconnected from the battery connectors on the circuit board without damaging the ribbon cable

Contact pins on the ToxiRAE Pro circuit board not bent

Warning: Ensure the ToxiRAE Pro is turned off before starting the procedure.

Inspect the filter for dirt or damage.

Inspect the cap and rubber insert for damage.

Upload a photo of the damaged parts.

If the filter or cap shows signs of damage, replace the entire instrument cap assembly.

Remove the top cap by unscrewing it.

Replace with a new cap/filter by screwing it on.

Sign off on the filter replacement procedure.

Warning: Do not use detergents or chemicals for cleaning.

Did you use a soft cloth for cleaning?

Did you use a damp cloth if necessary?

Did you install the Calibration Adapter before cleaning?

Are the sensor openings and filter clean?

Are the contacts at the base of the ToxiRAE Pro and on the charging cradle clean?

Did you wipe the contacts with a soft, dry cloth if they were not clean?

Sign off on the cleaning procedure
