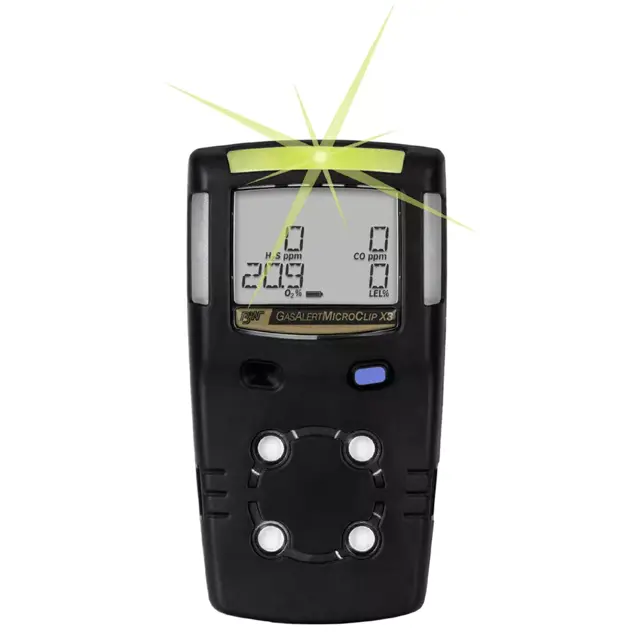

Honeywell MicroClip X3 BW GasAlert

Warning: This procedure requires trained personnel with PPE!

Six machine screws on the rear shell removed?

Back cover removed without damaging the charger pins?

Circular rigidified flex PCB atop the sensor removed without tearing the flex cable?

PCB lifted straight up without damaging the battery?

New sensor placed on the front shell?

WARNING! The detector must be charged in a safe area that is free of hazardous gas in temperatures of 32°F to 113°F (0°C to 45°C).

Plug the charging adapter into an AC outlet

CAUTION! The charging adapter is voltage specific to your region. Use of the charging adapter outside your region will damage the charger and the detector.

Attach the charging adapter to the charger interface

Allow the battery to charge per battery specifications. The charging indicator flashes on the LCD while the detector is being charged.

When charging is complete, the charging indicator stops flashing and displays to indicate a full charge. Remove the charging adapter and activate the detector.

If the battery indicator does not display, refer to Troubleshooting.

Charge the battery after each workday.

Place the detector face down on a clean surface

Remove the six machine screws on the rear shell

Remove the back cover by lifting the top and the bottom upwards simultaneously

Remove the two screws on the PCB

Remove and replace the sensor filter into the front shell if it is stuck to the sensors

Warning: This maintenance check requires trained personnel with PPE!

Clean the exterior with a soft damp cloth

Did you use solvents, soaps, or polishes?

Did you immerse the detector in liquids?

Sign off on the GasAlert maintenance

Warning: Ensure the detector is deactivated before starting the procedure.

Detector placed face down on a clean surface

Six machine screws on the rear shell removed

Back cover removed without damaging the charger pins

PCB placement noted and two screws on the PCB removed

Old sensor filter removed without damaging the battery

Liner tab pulled and liner removed from the sensor filter

Black gasket aligned and placed correctly
