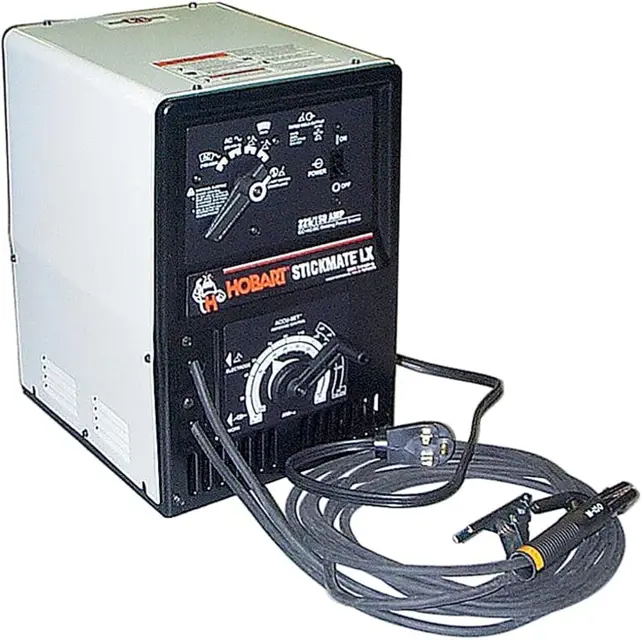

Hobart Hobart - STICKMATE LX STICKMATE LX

- Repair Or Replace Cracked Cables.

Turn Off welding power source and disconnect input power.

(Do not grease screw threads on shunt block.)

Apply light coating of high temperature grease to shaded areas of both shunt blocks. Turn amperage control handle to spread grease evenly.

If shunt block vibrates and becomes noisy, tighten adjustment screws 1/4 turn. Install wrapper, turn On unit, and check for shunt noise. Repeat procedure until noise stops. Do not overtighten. Call your nearest Factory Authorized Service Agent if noise continues.

Install wrapper before turning On power.;

During Heavy Service, Clean Monthly;

Turn Off welding power source and disconnect input power.

(Located Inside Unit) Insert crank handle onto shunt shaft protruding through front panel and turn crank handle to adjust shunt to the proper vale of "X", depending on model (see detail of transformer and shunt.
